ECL 8-bit synchronous binary counter, surface mountable in a 5x5mm QFN EP package. Features asynchronous reset, unidirectional up counting, and 8 input/output lines. Operates from a 3V to 3.6V supply with a typical 3.3V operating voltage. Offers a 0.7ns propagation delay and 1ns turn-on delay. This halogen-free, lead-free component is RoHS compliant and operates within a -40°C to 70°C temperature range.
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC100EP016AMNG technical specifications.
General
Package/Case
QFN EP
Direction
Up, Unidirectional
Halogen Free
Halogen Free
Height
0.95mm
Lead Free
Lead Free
Length
5mm
Logic Function
Counter
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
1
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
8
Operating Supply Voltage
3.3V
Package Quantity
74
Packaging
Rail/Tube
Propagation Delay
0.7ns
Radiation Hardening
No
Reset
Asynchronous
RoHS Compliant
Yes
Series
100EP
Sync/Async
Synchronous
Technology
ECL
Turn-On Delay Time
1ns
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MC100EP016AMNG Datasheet
Download the complete datasheet for Onsemi MC100EP016AMNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

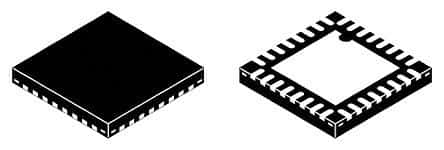

Product Images
