Frequency2.5GHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC100EP445MNG technical specifications.
General
| Package/Case | QFN |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 2.5GHz |
| Max Input Voltage | 2.42V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Output Current | 50mA |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC100EP445MNG Datasheet
Download the complete datasheet for Onsemi MC100EP445MNG to view detailed technical specifications.
No datasheet is available for this part.

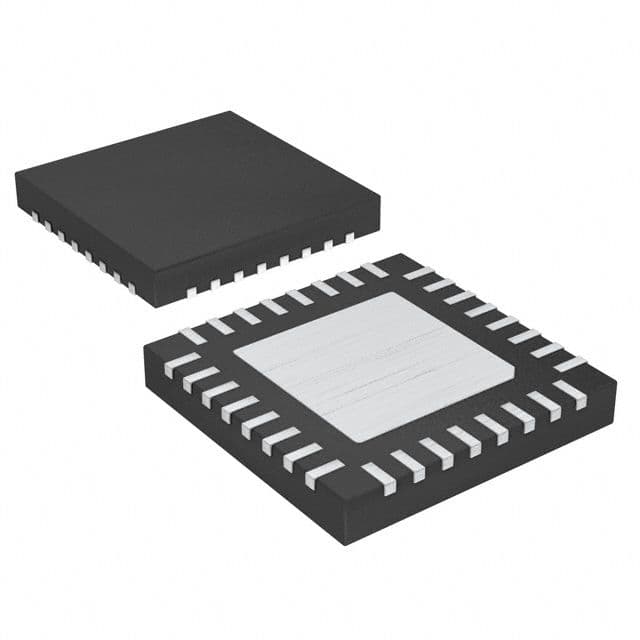

Product Images
