Onsemi
MC100LVELT22MNRG
Translator, Dual LVTTL / LVCMOS to Differential LVPECL, DFN8 2.0x2.0x0.9mm, 0.5p, 1000-REEL
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC100LVELT22MNRG technical specifications.
General
Package/Case
DFN EP
Channel Type
Unidirectional
Halogen Free
Halogen Free
High Level Output Current
-50mA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.8V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Circuits
1
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
0.6ns
RoHS Compliant
Yes
Series
100LVELT
Technology
ECL
Turn-On Delay Time
600ps
Compliance
RoHS
Compliant
Datasheet
Onsemi MC100LVELT22MNRG Datasheet
Download the complete datasheet for Onsemi MC100LVELT22MNRG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

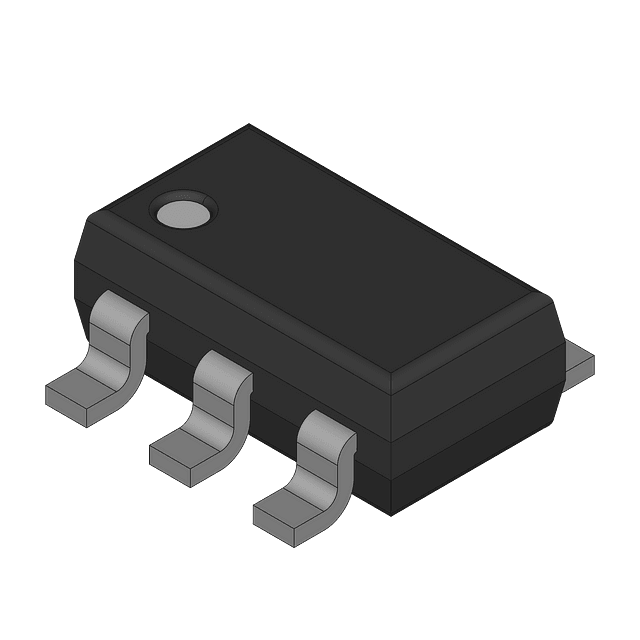

Product Images
