Onsemi
MC10H352FNG
QUAD TTL/CMOS TO PECL TRANSLATOR, COMPLEMENTARY OUTPUT, PQCC20, LEAD FREE, PLASTIC, LCC-20
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC10H352FNG technical specifications.
General
Package/Case
PLCC
High Level Output Current
-50mA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
50mA
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
4
Number of Channels
4
Number of Circuits
4
Operating Supply Voltage
5V
Output Current
50mA
Package Quantity
46
Packaging
Rail/Tube
Propagation Delay
2ns
RoHS Compliant
Yes
Series
10H
Technology
ECL
Turn-On Delay Time
2.1ns
Compliance
RoHS
Compliant
Datasheet
Onsemi MC10H352FNG Datasheet
Download the complete datasheet for Onsemi MC10H352FNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

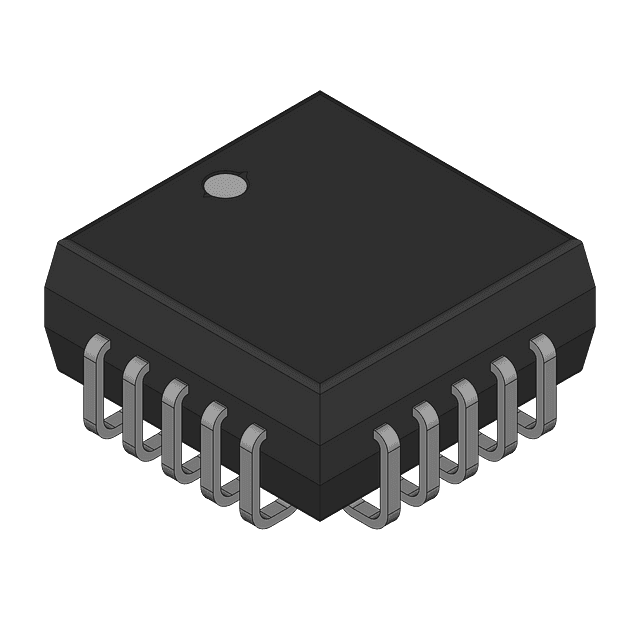

Product Images
