6-channel non-inverting CMOS buffer/converter in a 16-pin SOIC package. Features a wide supply voltage range of 3V to 18V, with a nominal 18V. Offers 30mA low-level output current and -4.7mA high-level output current, supporting up to 40mA output current. Operates across a temperature range of -55°C to 125°C. This surface-mount component is RoHS and Halogen Free compliant.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MC14050BDR2G technical specifications.
General
Package/Case
SOIC
Halogen Free
Halogen Free
Height
1.5mm
High Level Output Current
-4.7mA
Lead Free
Lead Free
Length
10mm
Logic Function
Buffer, Inverting
Low Level Output Current
30mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
6
Number of Bits per Element
1
Number of Channels
6
Number of Elements
6
Number of Functions
6
Number of Input Lines
6
Number of Inputs
6
Number of Output Lines
6
Number of Outputs
6
Output Current
40mA
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
140ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
4000B
Supply Voltage-Nom
18V
Technology
CMOS
Turn-On Delay Time
140ns
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MC14050BDR2G Datasheet
Download the complete datasheet for Onsemi MC14050BDR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

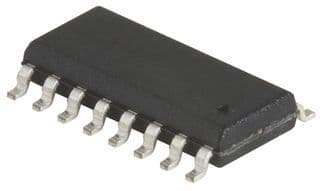

Product Images
