Triple 3-input AND gate logic IC featuring CMOS technology. Operates with a supply voltage range of 3V to 18V, with a nominal 18V. Offers a high-level output current of -4.2mA and a low-level output current of 4.2mA, with a maximum output current of 8.8mA. This through-hole mounted component comes in a 14-pin PDIP package and boasts a propagation delay of 100ns. RoHS compliant and designed for operation between -55°C and 125°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi MC14073BCPG technical specifications.
General
| Package/Case | PDIP |
| Height | 3.68mm |
| High Level Output Current | -4.2mA |
| Lead Free | Lead Free |
| Length | 19.56mm |
| Logic Function | AND GATE |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 8.8mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Functions | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 8.8mA |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Propagation Delay | 100ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 4000B |
| Supply Voltage-Nom | 18V |
| Technology | CMOS |
| Turn-On Delay Time | 100ns |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC14073BCPG Datasheet
Download the complete datasheet for Onsemi MC14073BCPG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

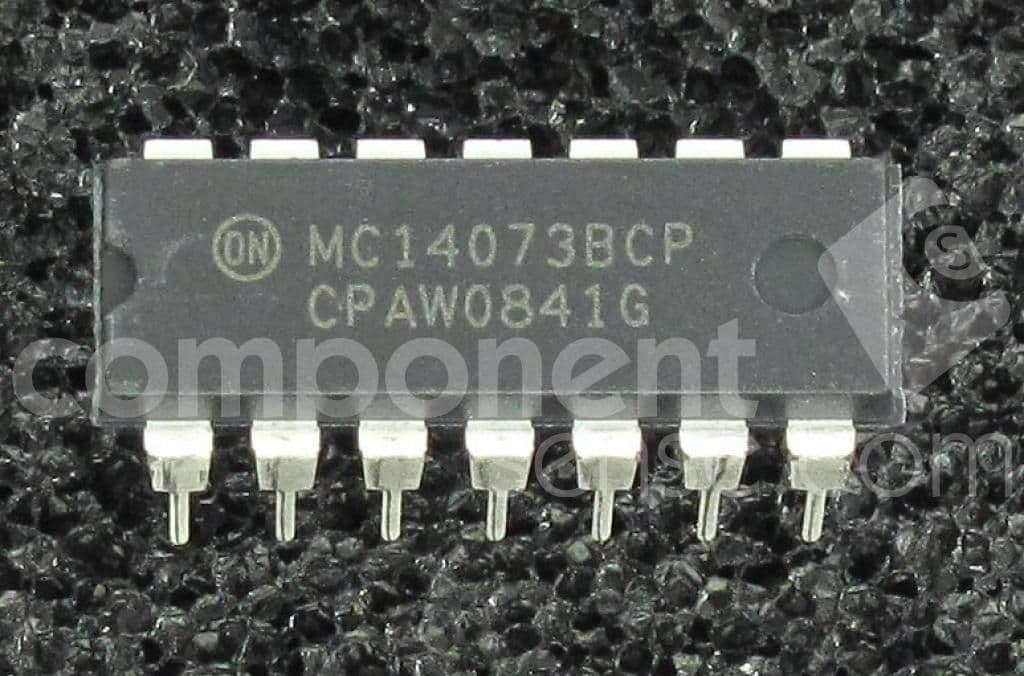

Product Images
