The MC34064SN-5T1 is a simple reset/power-on reset IC from Onsemi. It operates over a temperature range of 0°C to 70°C and has a maximum supply voltage of 6.5V and minimum supply voltage of 1V. The device is packaged in a TSOP-5 package and has an operating supply current of 390uA. It is not RoHS compliant and is available in quantities of 3000 per reel.
PackageTSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC34064SN-5T1 technical specifications.
General
| Package/Case | TSOP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 390uA |
| Overvoltage Threshold | 4.7V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reset | Active Low |
| RoHS Compliant | No |
| Threshold Voltage | 4.6V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.61V |
| Watchdog Timer | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MC34064SN-5T1 Datasheet
Download the complete datasheet for Onsemi MC34064SN-5T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

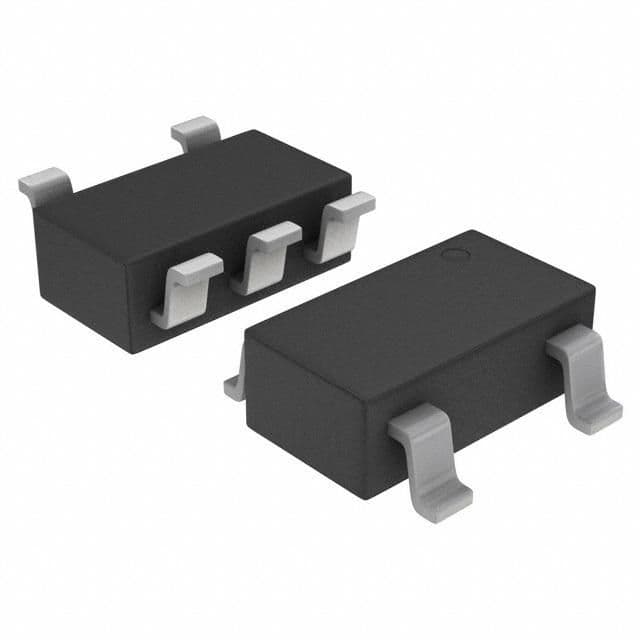

Product Images
