Technical Specifications
Onsemi MC74ACT132N technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | 24mA |
| Lead Free | Contains Lead |
| Logic Function | NAND GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 11.5ns |
| Quiescent Current | 4uA |
| RoHS Compliant | No |
| Series | 74ACT |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MC74ACT132N Datasheet
Download the complete datasheet for Onsemi MC74ACT132N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

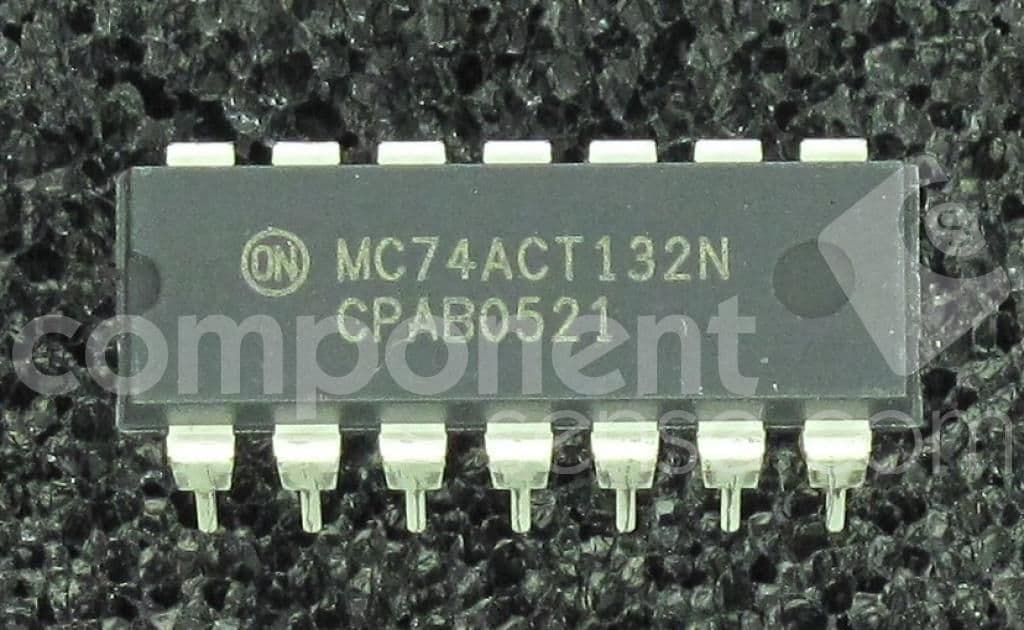

Product Images
