Quad 2-input multiplexer featuring 3-state outputs. This surface-mount SOIC package offers 4 independent circuits, each with 2 input lines and 1 output line. Operates with a single supply voltage ranging from 4.5V to 5.5V, with a nominal 5V. Delivers 24mA high and low level output current. RoHS and Halogen Free compliant, with a propagation delay of 7.5ns.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC74ACT257DG technical specifications.
General
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| High Level Output Current | 24mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Multiplexer, Mux |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 8 |
| Number of Output Lines | 3 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Propagation Delay | 7.5ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74ACT |
| Supply Type | Single |
| Supply Voltage-Nom | 6V |
| Throw Configuration | DPST |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74ACT257DG Datasheet
Download the complete datasheet for Onsemi MC74ACT257DG to view detailed technical specifications.
No datasheet is available for this part.

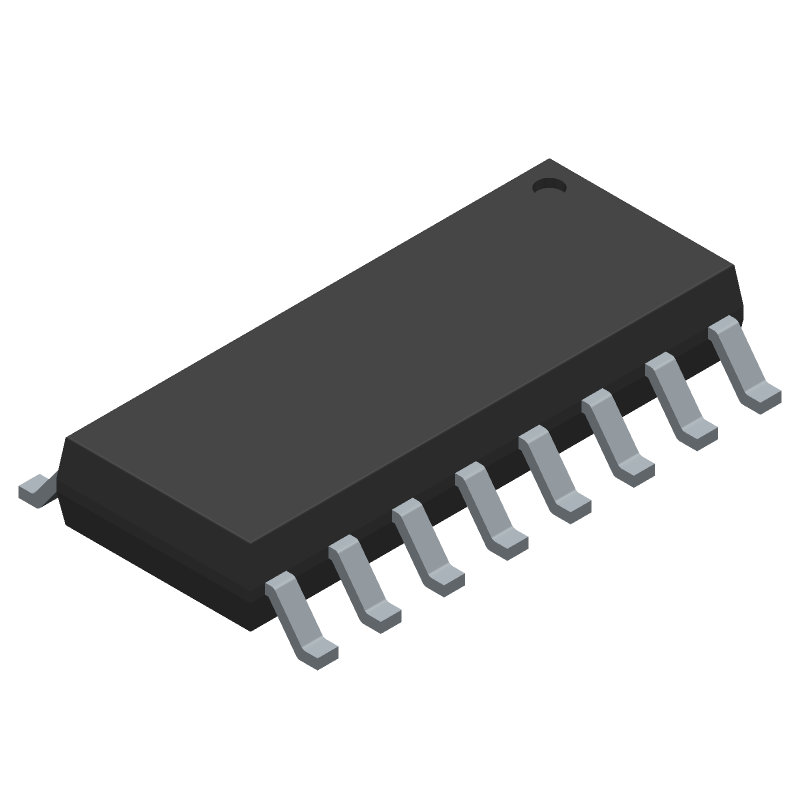

Product Images
