PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC74HC4538AFEL technical specifications.
General
Package/Case
SOIC
High Level Output Current
-5.2mA
Independent Circuits
2
Lead Free
Contains Lead
Logic Function
Multivibrator
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Elements
2
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
30ns
Quiescent Current
130uA
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
295ns
Compliance
RoHS
Compliant
Datasheet
Onsemi MC74HC4538AFEL Datasheet
Download the complete datasheet for Onsemi MC74HC4538AFEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

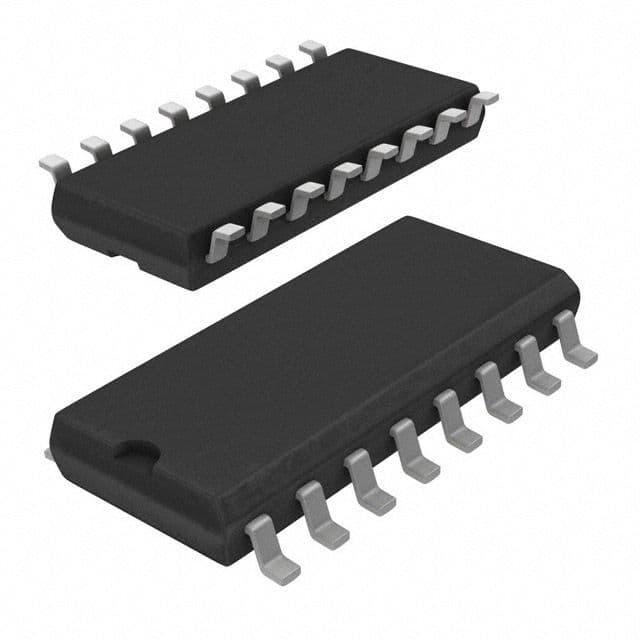

Product Images
