Octal 3-State Non-inverting Transparent Latch, SOIC-20 WB package. Features 8 independent D-type latches with 3-state outputs. Operates with a supply voltage range of 2V to 6V, supporting 7.8mA output current. CMOS technology ensures low power consumption. Suitable for surface mount applications with a wide operating temperature range of -55°C to 125°C. RoHS and Lead Free compliant.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MC74HC573ADWR2G technical specifications.
General
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| High Level Output Current | -7.8mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Latch, D-Type |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 3 |
| Number of Inputs | 8 |
| Number of Output Lines | 3 |
| Output Current | 7.8mA |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 30ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Voltage-Nom | 6V |
| Technology | CMOS |
| Turn-On Delay Time | 26ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74HC573ADWR2G Datasheet
Download the complete datasheet for Onsemi MC74HC573ADWR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

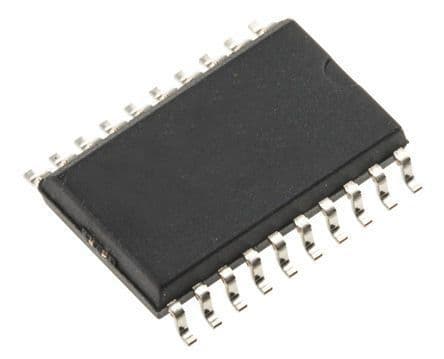

Product Images
