Dual D-Type positive-edge triggered flip-flop IC, featuring 2 elements with 1 bit per element. Operates with a 2V to 6V supply voltage range and a maximum frequency of 35MHz. Surface mountable in a 14-pin SOIC package, this CMOS logic component offers non-inverting outputs with a propagation delay of 17ns. Rated for operation between -55°C and 125°C, it is RoHS and Halogen Free compliant.
Frequency35MHz
PackageSOIC
Current Rating4uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC74HC74ADG technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Current Rating
4uA
Frequency
35MHz
Halogen Free
Halogen Free
Height
1.75mm
High Level Output Current
-5.2mA
Input Capacitance
10pF
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Functions
1
Number of Input Lines
1
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
2
Output Current
5.2mA
Package Quantity
55
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
17ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
160ns
Compliance
RoHS
Compliant
Datasheet
Onsemi MC74HC74ADG Datasheet
Download the complete datasheet for Onsemi MC74HC74ADG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

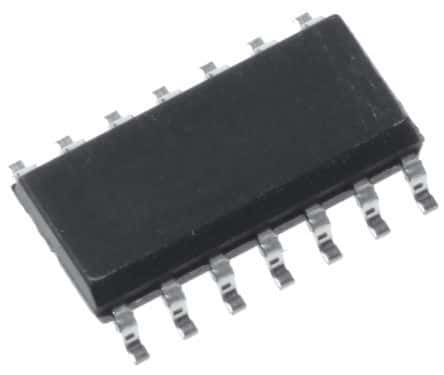

Product Images
