The MC7815CT is a single output linear voltage regulator with a fixed output voltage of 15V and an output current of 1A. It operates over a temperature range of 0°C to 125°C and is available in a TO-220-3 package. The device is not RoHS compliant and contains lead. It has a dropout voltage of 2V and a maximum input voltage of 40V.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi MC7815CT technical specifications.
General
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Lead Free | Contains Lead |
| Max Input Voltage | 40V |
| Min Input Voltage | 40V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 15V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| RoHS Compliant | No |
| Series | MC7815 |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MC7815CT Datasheet
Download the complete datasheet for Onsemi MC7815CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

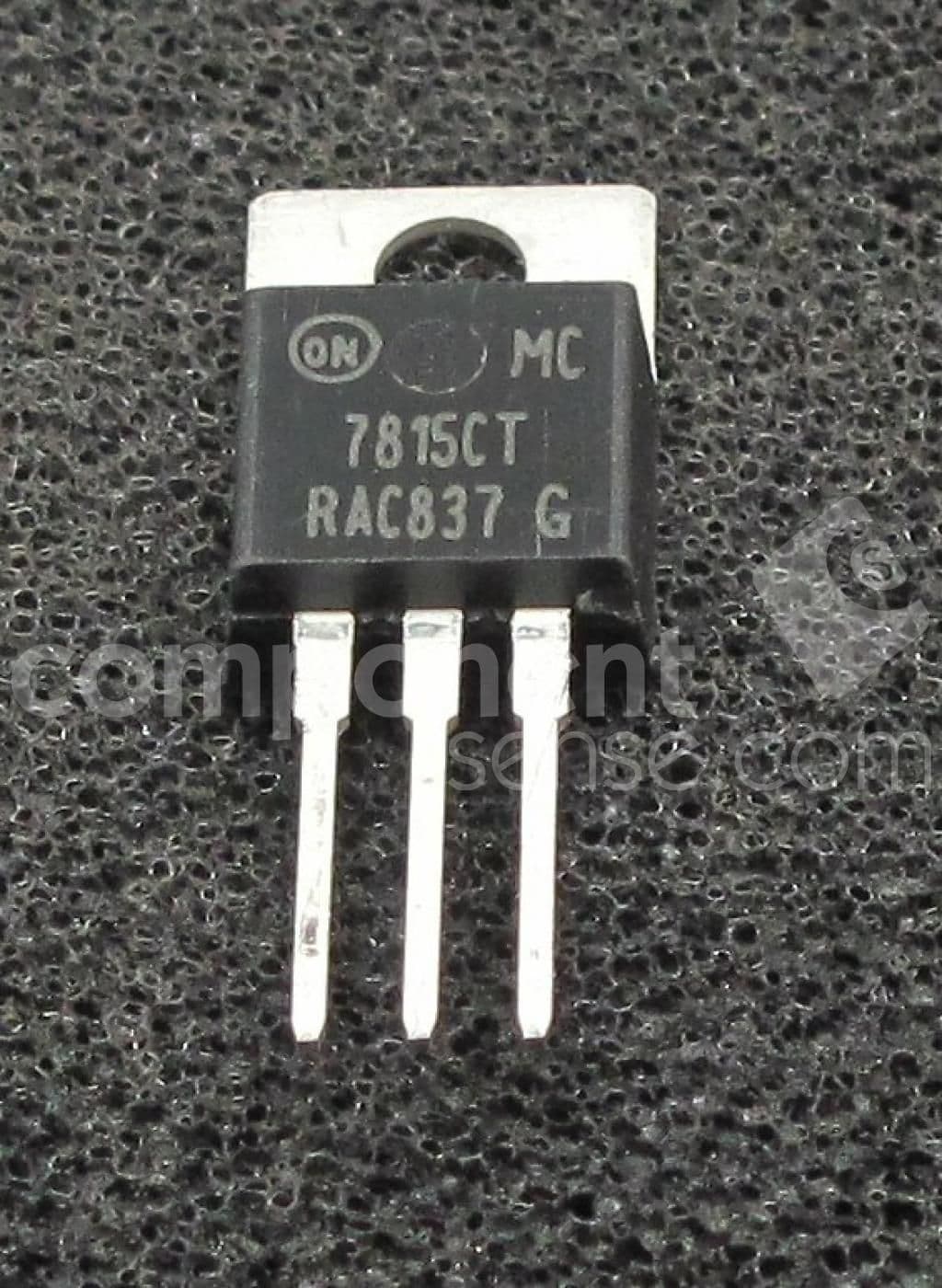

Product Images
