Positive fixed output linear voltage regulator, offering a 15V nominal output voltage with a 500mA maximum output current. Features a 2V dropout voltage and a 70dB power supply rejection ratio. Operates within a 0°C to 125°C temperature range, accepting input voltages from 17V to 35V. Packaged in a 3-pin DPAK surface-mount case, this component is RoHS and Halogen Free compliant.
PackageDPAK
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi MC78M15CDTG technical specifications.
General
| Package/Case | DPAK |
| Dropout Voltage | 2V |
| Halogen Free | Halogen Free |
| Height | 2.38mm |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 17V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 500mA |
| Min Output Voltage | 15V |
| Mount | Surface Mount |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 15V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC78M15CDTG Datasheet
Download the complete datasheet for Onsemi MC78M15CDTG to view detailed technical specifications.
No datasheet is available for this part.

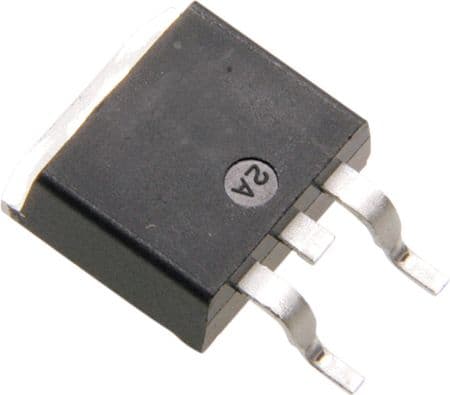

Product Images
