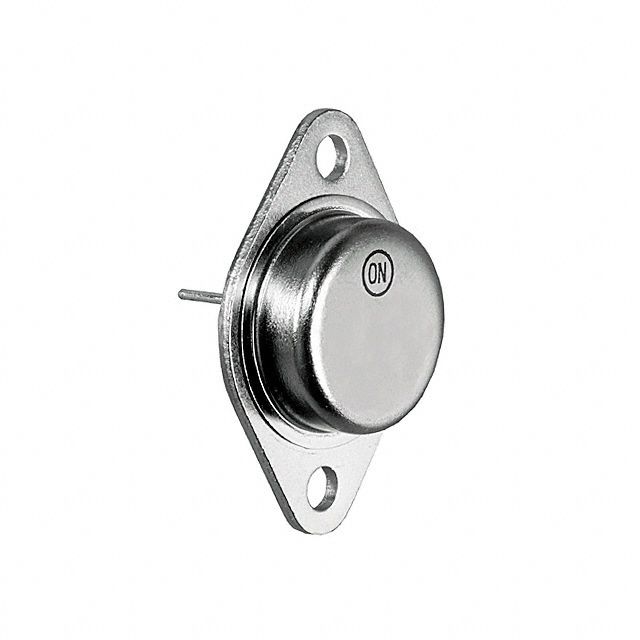

PNP Bipolar Junction Transistor (BJT) featuring a 60V collector-emitter voltage (VCEO) and a maximum collector current of 15A. This power transistor offers a 115W power dissipation and operates within a temperature range of -65°C to 200°C. Key specifications include a 2.5MHz transition frequency and a minimum hFE of 20. Packaged in a TO-204-3 (TO-3) metal can, this lead-free and RoHS-compliant component is supplied in a 100-piece tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MJ2955G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-204-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1.1V |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 3V |
| Current Rating | -15A |
| Emitter Base Voltage (VEBO) | 7V |
| Frequency | 2.5MHz |
| Gain Bandwidth Product | 2.5MHz |
| Height | 1.05inch |
| hFE Min | 20 |
| Lead Free | Lead Free |
| Length | 1.55inch |
| Max Collector Current | 15A |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 115W |
| Number of Elements | 1 |
| Package Quantity | 100 |
| Packaging | Tray |
| Polarity | PNP |
| Power Dissipation | 115W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 2.5MHz |
| DC Rated Voltage | -60V |
| Width | 0.335inch |
| RoHS | Compliant |
