PackageTO-225-3
Current Rating2A
PolarityNPN
Power1.5W
Quick Jump:
Technical Specifications
Onsemi MJE270 technical specifications.
General
| Package/Case | TO-225-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 2V |
| Collector-emitter Voltage-Max | 3V |
| Current Rating | 2A |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 6MHz |
| hFE Min | 500 |
| Lead Free | Contains Lead |
| Max Collector Current | 2A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1.5W |
| Package Quantity | 500 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 1.5W |
| RoHS Compliant | No |
| Transition Frequency | 6MHz |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MJE270 Datasheet
Download the complete datasheet for Onsemi MJE270 to view detailed technical specifications.
No datasheet is available for this part.

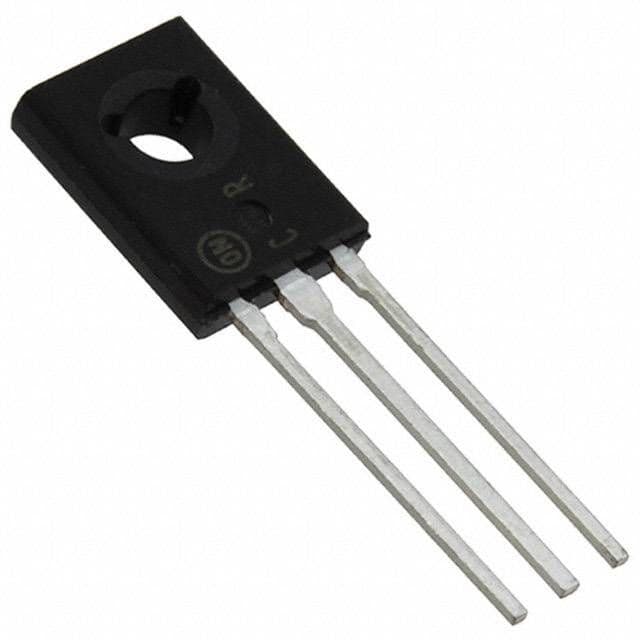

Product Images
