Octal 3-STATE Buffer, 8-bit, 8-channel CMOS logic IC. Features 2 elements, each with 4 bits, providing non-inverting buffering. Operates with a supply voltage range of 2V to 6V, with a nominal 6V. Offers high-level output current of -7.8mA and low-level output current of 7.8mA. Packaged in a lead-free SOIC surface mount case, measuring 13mm x 7.6mm x 2.35mm. RoHS compliant with a maximum operating temperature of 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MM74HC244WMX technical specifications.
General
Package/Case
SOIC
Height
2.35mm
High Level Output Current
-7.8mA
Lead Free
Lead Free
Length
13mm
Logic Function
Buffer, Inverting
Low Level Output Current
7.8mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Elements
2
Number of Functions
2
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
8
Number of Outputs
8
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
252ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
165ns
Weight
0.801g
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MM74HC244WMX Datasheet
Download the complete datasheet for Onsemi MM74HC244WMX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

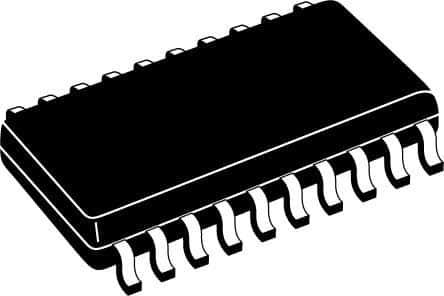

Product Images
