Technical Specifications
Onsemi MMBT3906WT1 technical specifications.
General
| Collector Base Voltage (VCBO) | -40V |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Saturation Voltage | -400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Rating | -200A |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 250MHz |
| hFE Min | 60 |
| Lead Free | Contains Lead |
| Max Collector Current | 200mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| RoHS Compliant | No |
| Transition Frequency | 250MHz |
| DC Rated Voltage | -40V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MMBT3906WT1 Datasheet
Download the complete datasheet for Onsemi MMBT3906WT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

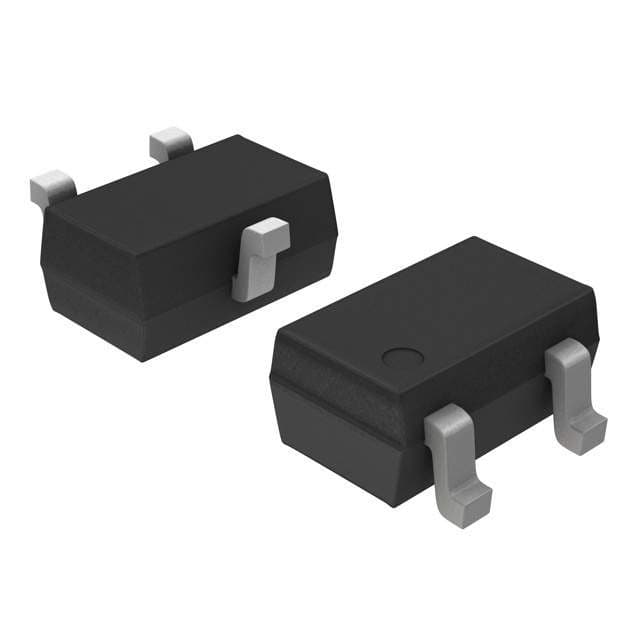

Product Images
