Technical Specifications
Onsemi MMSZ3V3T3 technical specifications.
General
| Impedance | 95R |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | No |
| Tolerance | 5% |
| DC Rated Voltage | 3.3V |
| Voltage Tolerance | 5% |
| Zener Current | 10mA |
| Zener Voltage | 3.3V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MMSZ3V3T3 Datasheet
Download the complete datasheet for Onsemi MMSZ3V3T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

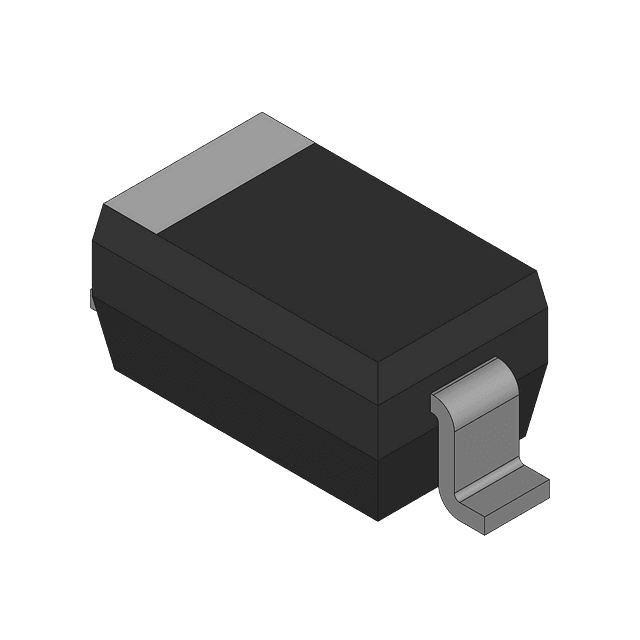

Product Images
