General purpose rectifier diode with a 600V repetitive reverse voltage and 1A average rectified current. Features a fast 75ns reverse recovery time and a 35A peak non-repetitive surge current. Housed in a compact DO-41 package with a 2.7mm diameter and 5.2mm height. Operates across a wide temperature range from -65°C to 175°C, with RoHS and Lead-Free compliance.
PackageDO-41
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MUR160G technical specifications.
General
Average Rectified Current
1A
Package/Case
DO-41
Current Rating
1A
Diameter
2.7mm
Forward Current
1A
Halogen Free
Halogen Free
Height
5.2mm
Lead Free
Lead Free
Length
0.204inch
Max Forward Surge Current (Ifsm)
35A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
600V
Max Surge Current
35A
Natural Thermal Resistance
87°C/W
Output Current
1A
Package Quantity
1000
Packaging
Bulk
Peak Non-Repetitive Surge Current
35A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
75ns
Reverse Recovery Time-Max
35ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
SWITCHMODE™
DC Rated Voltage
600V
Width
2.7mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MUR160G Datasheet
Download the complete datasheet for Onsemi MUR160G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

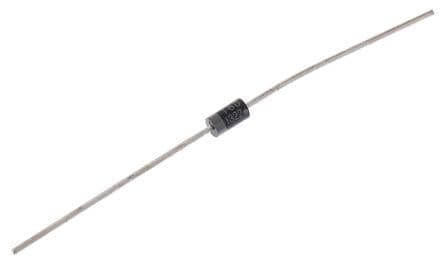

Product Images
