Ultra-fast recovery power rectifier with a 4A average rectified current and 600V reverse voltage rating. Features a 75ns reverse recovery time and 110A maximum surge current. Packaged in a DO-201AD axial lead configuration, this RoHS compliant component operates from -65°C to 175°C.
PackageDO-201AD
Current Rating4A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MUR460G technical specifications.
General
Average Rectified Current
4A
Package/Case
DO-201AD
Current Rating
4A
Diameter
5.3mm
Forward Current
4A
Halogen Free
Halogen Free
Height
9.5mm
Lead Free
Lead Free
Length
0.374inch
Max Forward Surge Current (Ifsm)
110A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
600V
Max Surge Current
110A
Output Current
4A
Package Quantity
500
Packaging
Bulk
Peak Non-Repetitive Surge Current
110A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
75ns
Reverse Recovery Time-Max
50ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
SWITCHMODE™
Termination
Axial
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Onsemi MUR460G Datasheet
Download the complete datasheet for Onsemi MUR460G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

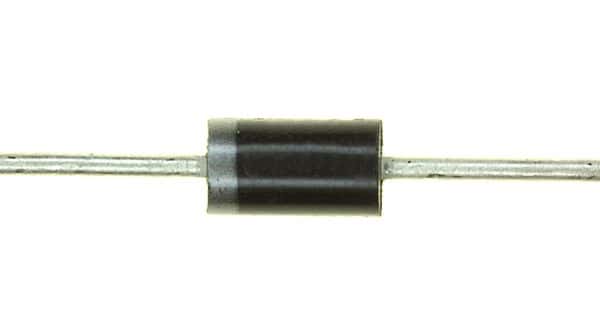

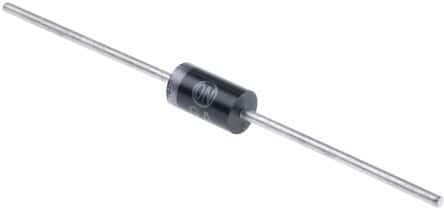

Product Images
