Ultra-fast recovery power rectifier with an 8A average rectified current and 800V repetitive reverse voltage. Features a TO-220-2 package, 100A peak non-repetitive surge current, and a maximum operating temperature of 175°C. This RoHS compliant component offers a reverse recovery time of 75ns and is supplied in a 50-piece rail/tube.
PackageTO-220-2
Current Rating8A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MUR880EG technical specifications.
General
| Average Rectified Current | 8A |
| Package/Case | TO-220-2 |
| Current Rating | 8A |
| Forward Current | 8A |
| Height | 9.27mm |
| Lead Free | Lead Free |
| Length | 10.29mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 25uA |
| Max Reverse Voltage (DC) | 800V |
| Max Surge Current | 100A |
| Output Current | 8A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 100ns |
| Reverse Recovery Time-Max | 75ns |
| Reverse Voltage | 800V |
| RoHS Compliant | Yes |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 800V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MUR880EG Datasheet
Download the complete datasheet for Onsemi MUR880EG to view detailed technical specifications.
No datasheet is available for this part.

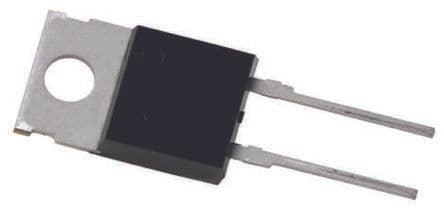

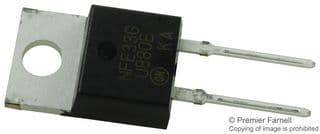

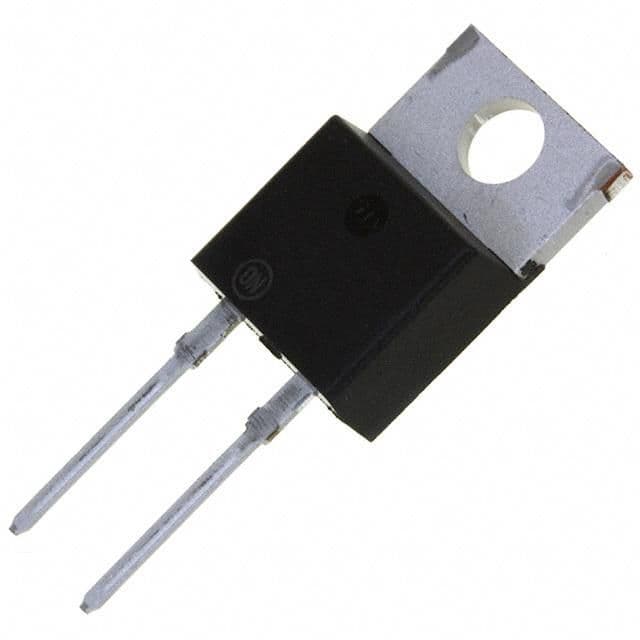

Product Images
