Ultra-fast recovery power rectifier with a 1A forward current and 50V repetitive reverse voltage. Features a 2A average rectified current and 50A peak non-repetitive surge current. Packaged in SMA and supplied on tape and reel, this component operates from -65°C to 175°C. It is RoHS and Halogen Free compliant.
PackageSMA
Current Rating2A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MURA105T3G technical specifications.
General
| Average Rectified Current | 2A |
| Package/Case | SMA |
| Current Rating | 2A |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 2uA |
| Max Reverse Voltage (DC) | 50V |
| Max Surge Current | 50A |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 30ns |
| Reverse Recovery Time-Max | 30ns |
| Reverse Voltage | 50V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MURA105T3G Datasheet
Download the complete datasheet for Onsemi MURA105T3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

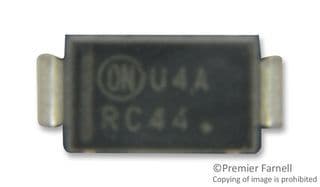

Product Images
