The MURF1620CT is a general purpose rectifier from Onsemi with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum forward surge current of 100A and a maximum reverse voltage of 200V. The device is packaged in a TO-220-3 package and is rated for a maximum current of 16A. The MURF1620CT is not RoHS compliant.
PackageTO-220-3
Current Rating16A
Quick Jump:
Technical Specifications
Onsemi MURF1620CT technical specifications.
General
| Average Rectified Current | 8A |
| Package/Case | TO-220-3 |
| Current Rating | 16A |
| Forward Current | 16A |
| Lead Free | Contains Lead |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 100A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 100A |
| Reverse Recovery Time | 35ns |
| Reverse Voltage | 200V |
| RoHS Compliant | No |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MURF1620CT Datasheet
Download the complete datasheet for Onsemi MURF1620CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

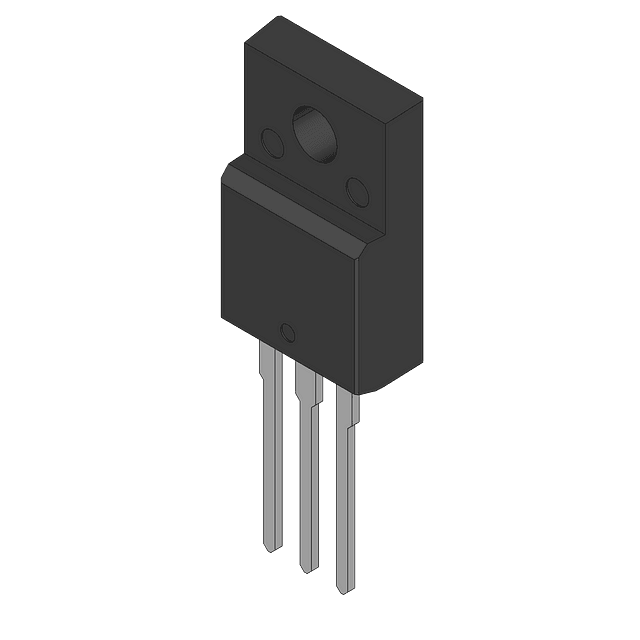

Product Images
