Voltage-Controlled Crystal Oscillator (VCXO) with PureEdge™ technology, operating at a nominal frequency of 155.52 MHz. Features differential LVPECL outputs, a 3.3V operating supply voltage, and a wide input voltage range of 2.97V to 3.63V. Offers 100ppm frequency stability and a load capacitance of 16pF. Packaged in a 4x4mm QFN with 0.5mm pitch, suitable for surface mounting. This RoHS and Halogen Free component operates from -40°C to 85°C.
Frequency155.52MHz
PackageQFN
Current110mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NB3N15552MNG technical specifications.
General
Package/Case
QFN
Frequency Stability
100ppm
Halogen Free
Halogen Free
Height
0.95mm
Input
Crystal
Lead Free
Lead Free
Length
4mm
Load Capacitance
16pF
Max Frequency
155.52MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Operating Supply Current
110mA
Operating Supply Voltage
3.3V
Package Quantity
92
Packaging
Rail/Tube
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
PureEdge™
Supply Current
110mA
Supply Voltage-Nom
3.63V
Weight
0.004339oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NB3N15552MNG Datasheet
Download the complete datasheet for Onsemi NB3N15552MNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

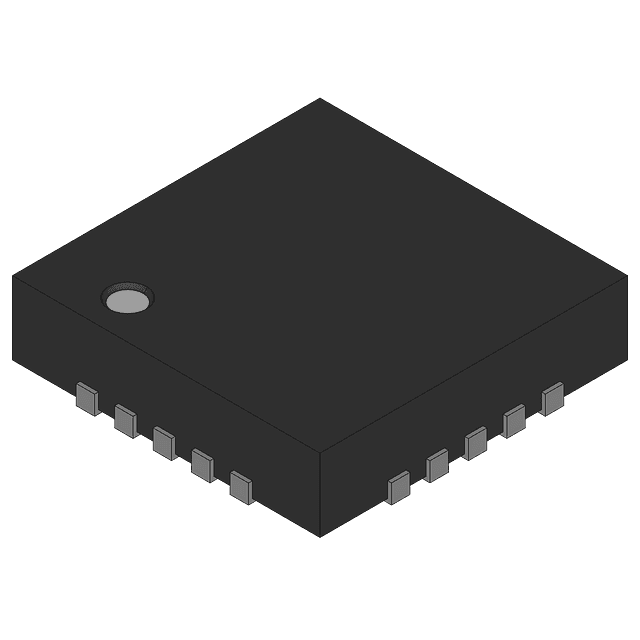

Product Images
