Dual buffer IC featuring Schmitt trigger inputs for enhanced noise immunity. This CMOS logic device operates from a 1.65V to 5.5V supply, offering 2 non-inverting buffer channels. With a propagation delay of 15.8ns and a low quiescent current of 1uA, it delivers 32mA high and low level output current. Packaged in a compact 1mm height, 2mm length, 1.25mm width SC surface-mount case, this lead-free component is supplied on a 250-piece tape and reel.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi NC7WZ17P6 technical specifications.
General
Package/Case
SC
Height
1mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2mm
Logic Function
Schmitt Trigger, Buffer
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
180mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Functions
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
2
Number of Outputs
2
Package Quantity
250
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
15.8ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
7WZ
Supply Voltage-Nom
5.5V
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
6.6ns
Weight
0.028g
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NC7WZ17P6 Datasheet
Download the complete datasheet for Onsemi NC7WZ17P6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

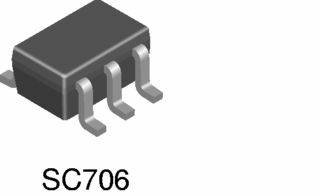

Product Images
