The NCP1012APL130R2G is a DC/DC controller with a flyback topology, suitable for operation at a maximum input voltage of 10V and maximum power dissipation of 19W. It is designed for surface mount applications and has a maximum operating temperature of 150°C. The device provides fault protection against over voltage and over temperature conditions. It is available in a lead-free package and is compliant with RoHS regulations.
Frequency130kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NCP1012APL130R2G technical specifications.
General
| Package/Case | SMD/SMT |
| Duty Cycle | 67% |
| Fault Protection | Over Voltage, Over Temperature |
| Frequency | 130kHz |
| Lead Free | Lead Free |
| Max Duty Cycle | 72% |
| Max Input Voltage | 10V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 700V |
| Max Power Dissipation | 19W |
| Max Supply Voltage | 10V |
| Min Supply Voltage | -300mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Topology | Flyback |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP1012APL130R2G Datasheet
Download the complete datasheet for Onsemi NCP1012APL130R2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

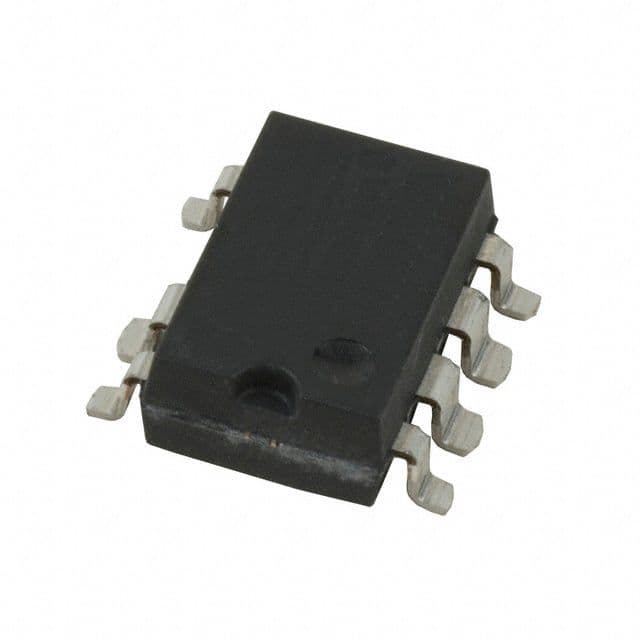

Product Images
