High voltage switching regulator for offline SMPS, featuring a PDIP package. Operates from 90V to 265V AC input with a maximum output current of 880mA and a fixed output voltage up to 700V. This DC/DC controller boasts a maximum duty cycle of 87% and a switching frequency up to 71.5kHz, suitable for flyback topologies. Designed for through-hole mounting, it offers a maximum power dissipation of 25W and operates within a temperature range of 0°C to 125°C. The component is RoHS compliant and halogen-free.
PackagePDIP
MountingThrough Hole
Power25W
Quick Jump:
Technical Specifications
Onsemi NCP1027P065G technical specifications.
General
| Package/Case | PDIP |
| Halogen Free | Halogen Free |
| Height | 3.44mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Duty Cycle | 87% |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 265V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 880mA |
| Max Output Voltage | 700V |
| Min Output Voltage | -300mV |
| Max Power Dissipation | 25W |
| Max Supply Voltage | 8.9V |
| Min Supply Voltage | 7.9V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 800mA |
| Output Power | 25W |
| Output Type | Fixed |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Power Dissipation | 25mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 71.5kHz |
| Topology | Flyback |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP1027P065G Datasheet
Download the complete datasheet for Onsemi NCP1027P065G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

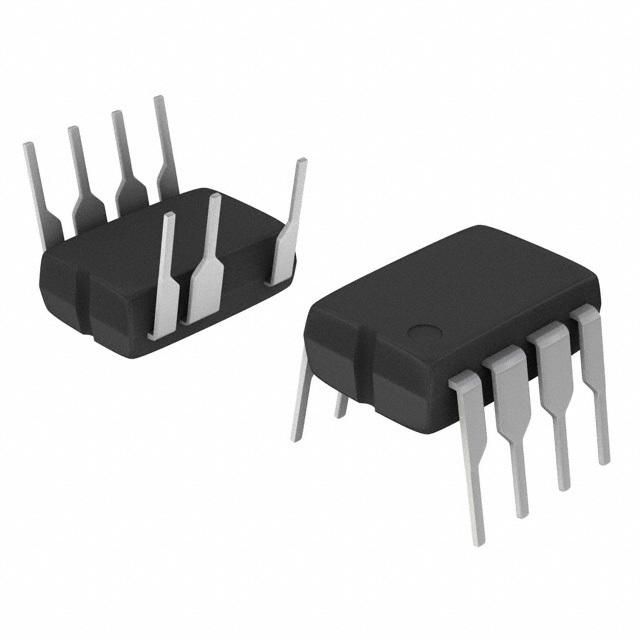

Product Images
