High voltage switching regulator for offline SMPS, featuring a PDIP package. Operates with AC input voltages from 100V to 250V, supporting a maximum output current of 450mA. This isolated DC/DC controller boasts a maximum duty cycle of 72% and a switching frequency up to 100kHz, ideal for flyback topologies. The component is lead-free and halogen-free, with a wide operating temperature range of -40°C to 150°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi NCP1075P065G technical specifications.
General
| Package/Case | PDIP |
| Fall Time | 10ns |
| Halogen Free | Halogen Free |
| Height | 3.44mm |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Duty Cycle | 72% |
| Max Input Voltage (AC) | 250V |
| Min Input Voltage (AC) | 100V |
| Max Input Voltage | 250V |
| Min Input Voltage | 100V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 450mA |
| Max Power Dissipation | 19W |
| Max Supply Voltage | 8.6V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Voltage | 8.2V |
| Output Current | 450mA |
| Output Type | Adjustable |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 100kHz |
| Topology | Flyback |
| Weight | 0.030018oz |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCP1075P065G Datasheet
Download the complete datasheet for Onsemi NCP1075P065G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

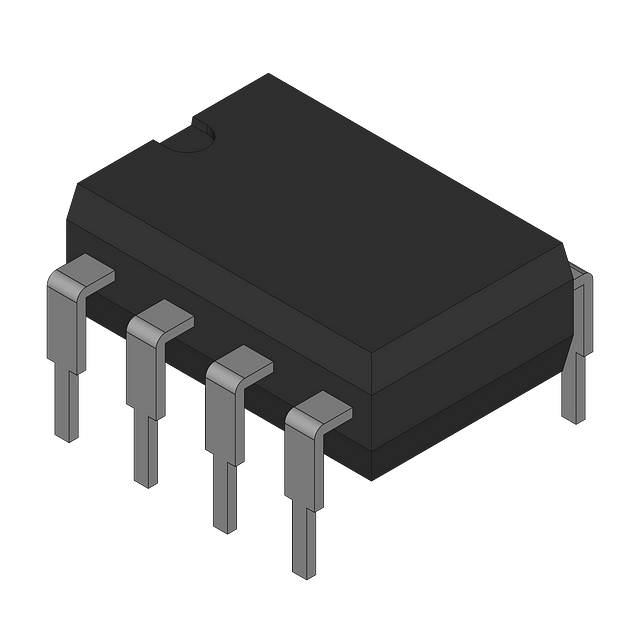

Product Images
