Quasi-resonant current mode controller for flyback topologies, featuring overpower compensation. Operates with a 130kHz switching frequency and supports up to 500V output voltage. Includes comprehensive fault protection for over voltage, over temperature, and short circuit conditions. Packaged in a 7-pin PDIP (PDIP-8 less pin 7) for through-hole mounting, with a supply voltage range of 3.6V to 13V. This lead-free and halogen-free component offers a maximum supply current of 500mA and a maximum operating temperature of 125°C.
Frequency130kHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi NCP1337PG technical specifications.
General
Package/Case
PDIP
Fall Time
20ns
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Frequency
130kHz
Halogen Free
Halogen Free
Height
3.44mm
Lead Free
Lead Free
Length
10.16mm
Max Frequency
130kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
500V
Max Supply Current
500mA
Max Supply Voltage
13V
Min Supply Voltage
3.6V
Mount
Through Hole
Number of Outputs
1
Output Current
500mA
Output Voltage
20V
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
Flyback
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NCP1337PG Datasheet
Download the complete datasheet for Onsemi NCP1337PG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

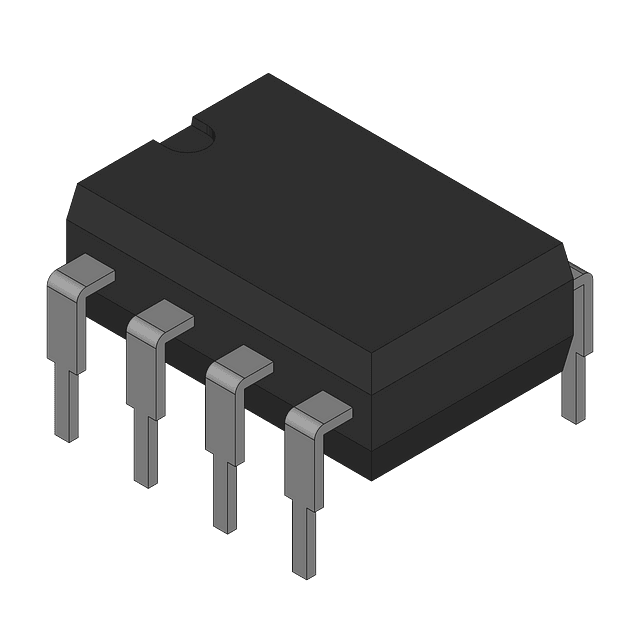

Product Images
