NCP5612MUTBG

Datasheet

2-Ch White LED Driver, Charge Pump, 1MHz, 5.5V, 60mA, LLGA-12

Onsemi

NCP5612MUTBG

Name: NCP5612MUTBG Onsemi
Brand: Onsemi
SKU: NCP5612MUTBG

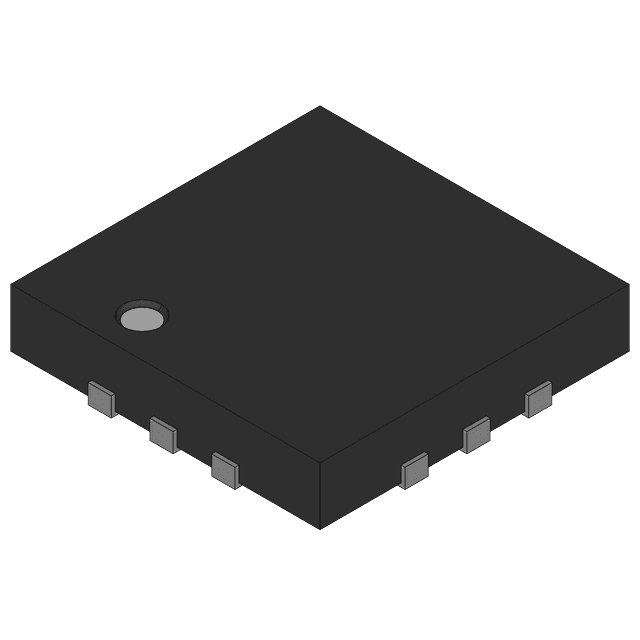

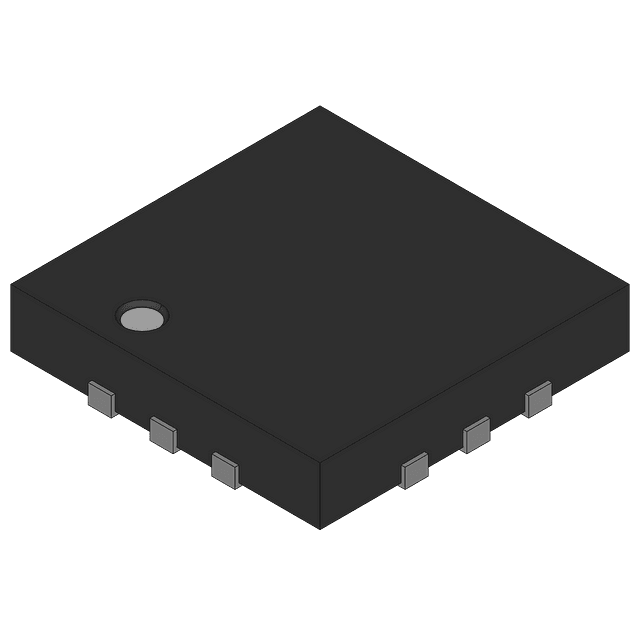

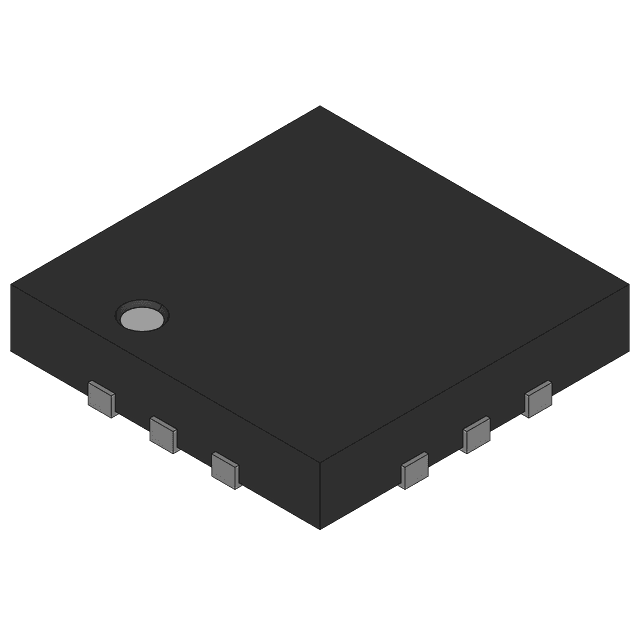

2-Ch White LED Driver, Charge Pump, 1MHz, 5.5V, 60mA, LLGA-12

2-channel white LED driver featuring charge pump topology. Operates from a 2.7V to 5.5V input supply, delivering up to 60mA per channel with a 5.7V maximum output voltage. Integrated S-Wire link control and a 1MHz switching frequency. Housed in a compact 2x2x0.55mm LLGA12 package with 0.4mm pitch, suitable for surface mount applications. RoHS and Halogen Free compliant, with an operating temperature range of -40°C to 85°C.

Frequency1MHz

MountingSurface Mount

Power200mW

Quick Jump:

Technical Specifications

Onsemi NCP5612MUTBG technical specifications.

General

Frequency	1MHz
Halogen Free	Halogen Free
Height	0.55mm
Lead Free	Lead Free
Length	2mm
Max Input Voltage	5.5V
Min Input Voltage	2.7V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Output Voltage	5.7V
Max Power Dissipation	200mW
Max Supply Current	1mA
Max Supply Voltage	7V
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Drivers	2
Number of Outputs	2
Number of Segments	2
Operating Supply Voltage	5.5V
Output Current	60mA
Output Voltage	5.7V
Package Quantity	1
Packaging	Tape and Reel
Power Dissipation	200mW
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Termination	SMD/SMT
Topology	Charge Pump
Width	2mm
