The NCP563SQ25T1 is a single-output linear voltage regulator with a fixed output voltage of 2.5V and an output current of 280mA. It operates from a maximum input voltage of 6V and can withstand a maximum operating temperature of 85°C. The device is mounted in a surface mount package and is not RoHS compliant. The NCP563SQ25T1 contains lead and has a dropout voltage of 250mV, with an input bias current of 2.5uA.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NCP563SQ25T1 technical specifications.
General
| Dropout Voltage | 250mV |
| Input Bias Current | 2.5uA |
| Lead Free | Contains Lead |
| Max Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 280mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi NCP563SQ25T1 Datasheet
Download the complete datasheet for Onsemi NCP563SQ25T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

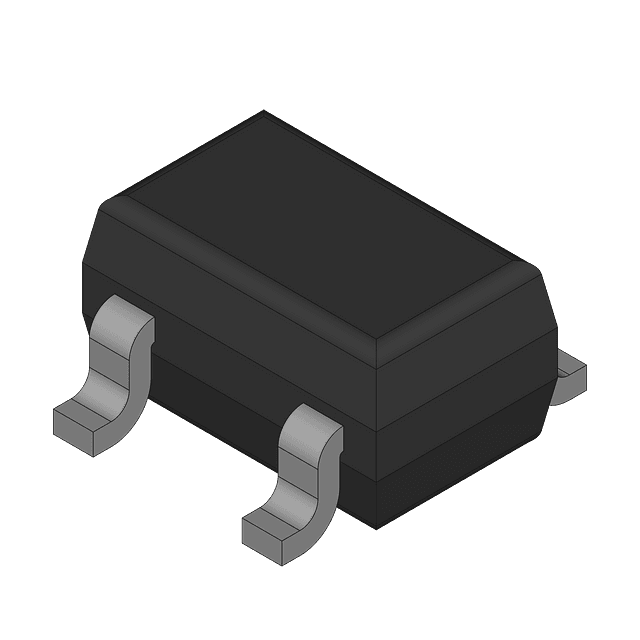

Product Images
