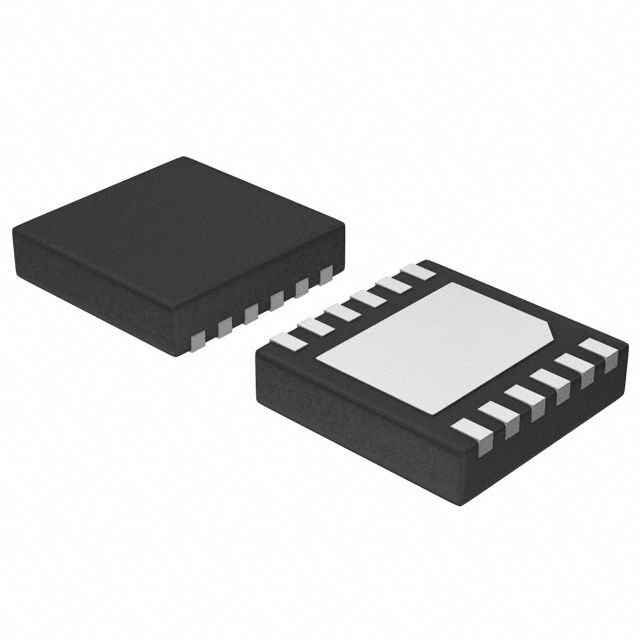

The NCV890104MWR2G is a DC/DC controller with a maximum input voltage of 36V and an output voltage of 3.5V. It has a maximum output current of 1.2A and is designed for surface mount applications. The device operates over a temperature range of -40 to 150°C and is RoHS compliant. It is available in a DFN package and is supplied on tape and reel in quantities of 3000.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NCV890104MWR2G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Lead Free | Lead Free |
| Max Input Voltage | 36V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Voltage | 34V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 36V |
| Output Configuration | Positive |
| Output Current | 1.2A |
| Output Type | Adjustable |
| Output Voltage | 3.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| RoHS | Compliant |
Download the complete datasheet for Onsemi NCV890104MWR2G to view detailed technical specifications.
