Onsemi
NCV890230PDR2G
Automotive Buck Switching Regulator, 2 A, 2 MHz , 45 V Load Dump, SOIC-8 EP, 2500-REEL
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi NCV890230PDR2G technical specifications.
General
| Package/Case | SOIC |
| Lead Free | Lead Free |
| Max Input Voltage | 36V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 34V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 800mV |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCV890230PDR2G Datasheet
Download the complete datasheet for Onsemi NCV890230PDR2G to view detailed technical specifications.
No datasheet is available for this part.

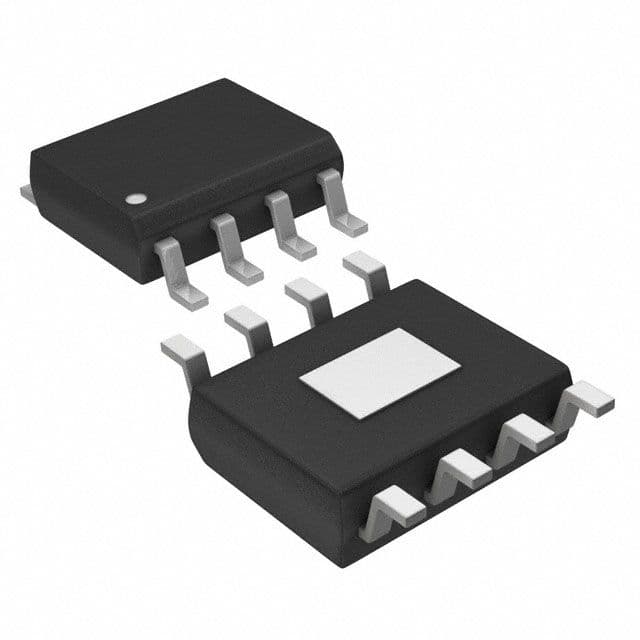

Product Images
