Technical Specifications
Onsemi NRVBS3100T3G technical specifications.
General
Average Rectified Current
3A
Package/Case
SMC
Element Configuration
Single
Forward Current
3A
Halogen Free
Halogen Free
Height
2.26mm
Lead Free
Lead Free
Length
7.11mm
Max Forward Surge Current (Ifsm)
130A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
50uA
Max Reverse Leakage Current
50uA
Max Reverse Voltage (DC)
100V
Max Surge Current
130A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
130A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NRVBS3100T3G Datasheet
Download the complete datasheet for Onsemi NRVBS3100T3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

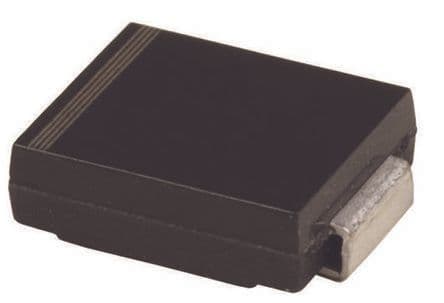

Product Images
