ONSEMI

NTD6415ANLT4G

N-Ch MOSFET, 100V, 23A, 52mΩ, DPAK, Logic Level

Onsemi

NTD6415ANLT4G

Name: NTD6415ANLT4G Onsemi
Brand: Onsemi
SKU: NTD6415ANLT4G

N-Ch MOSFET, 100V, 23A, 52mΩ, DPAK, Logic Level

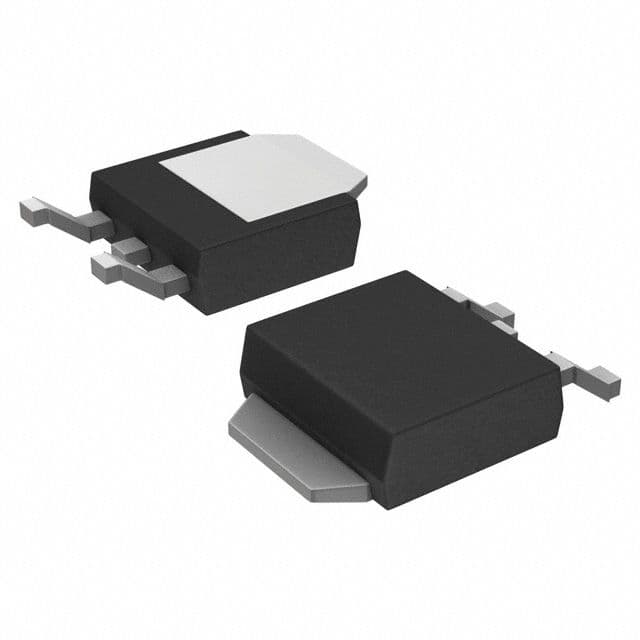

Single N-Channel Logic Level Power MOSFET, 100V Drain to Source Breakdown Voltage, 23A Continuous Drain Current, and 52mΩ Drain to Source Resistance. Features a DPAK surface mount package with a maximum power dissipation of 83W and an operating temperature range of -55°C to 175°C. Includes fast switching characteristics with a 11ns turn-on delay and 40ns turn-off delay. This RoHS compliant component is supplied on tape and reel in quantities of 2500.

PackageDPAK

PolarityN-CHANNEL

Power83W

Quick Jump:

Technical Specifications

Onsemi NTD6415ANLT4G technical specifications.

General

Package/Case	DPAK
Continuous Drain Current (ID)	23A
Drain to Source Breakdown Voltage	100V
Drain to Source Resistance	52mR
Drain to Source Voltage (Vdss)	100V
Element Configuration	Single
Fall Time	71ns
Gate to Source Voltage (Vgs)	20V
Height	2.38mm
Input Capacitance	1.024nF
Lead Free	Lead Free
Length	6.73mm
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Power Dissipation	83W
Package Quantity	2500
Packaging	Tape and Reel
Polarity	N-CHANNEL
Power Dissipation	83W
Radiation Hardening	No
Rds On Max	52mR
RoHS Compliant	Yes
Turn-Off Delay Time	40ns
Turn-On Delay Time	11ns
Width	6.22mm
