Single N-Channel Power MOSFET, SOT-723 package, featuring 20V drain-source breakdown voltage and 890mA continuous drain current. Offers a maximum drain-source on-resistance of 200mΩ. Operates within a temperature range of -55°C to 150°C with 310mW power dissipation. Includes ESD protection and is RoHS compliant.
PackageSOT-723-3
PolarityN-CHANNEL
Power310mW
Quick Jump:
Technical Specifications
Onsemi NTK3134NT1G technical specifications.
General
Package/Case
SOT-723-3
Continuous Drain Current (ID)
890mA
Drain to Source Breakdown Voltage
20V
Drain to Source Resistance
200mR
Drain to Source Voltage (Vdss)
20V
Drain-source On Resistance-Max
200mR
Element Configuration
Single
Fall Time
4.8ns
Gate to Source Voltage (Vgs)
6V
Height
0.55mm
Input Capacitance
120pF
Lead Free
Lead Free
Length
1.25mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
310mW
Number of Elements
1
Package Quantity
4000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
310mW
Radiation Hardening
No
Rds On Max
350mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
1.2V
Turn-Off Delay Time
17.3ns
Turn-On Delay Time
6.7ns
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Onsemi NTK3134NT1G Datasheet
Download the complete datasheet for Onsemi NTK3134NT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

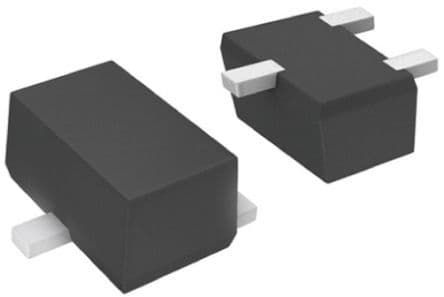

Product Images
