4-channel EMI/RFI filter with integrated ESD protection, designed for data line applications. Features 17pF capacitance, 100 Ohm resistance, and a maximum DC resistance of 115 Ohms. Offers up to -35dB attenuation across an 800 to 2200 MHz operating frequency range. Housed in a compact DFN8 package (1.6x1.6x0.9 mm), this halogen-free and lead-free component operates from -40°C to 85°C.
Frequency800 to 2200 MHz
PackageDFN
Capacitance17pF
Resistance100R
Quick Jump:
Technical Specifications
Onsemi NUF4403MNT1G technical specifications.
General
| Attenuation Value | -35dB |
| Capacitance | 17pF |
| Package/Case | DFN |
| Circuit Type | Filter |
| Current Rating | 1mA |
| DC Resistance-Max | 115R |
| Depth | 1.6mm |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.039inch |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Elements | 8 |
| Number of Lines | 4 |
| Operating Frequency | 800 to 2200 MHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 100R |
| RoHS Compliant | Yes |
| Termination | Flat |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NUF4403MNT1G Datasheet
Download the complete datasheet for Onsemi NUF4403MNT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

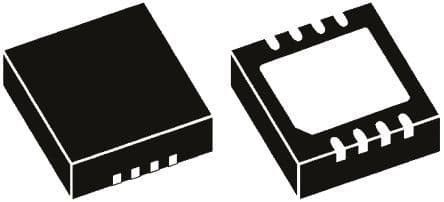

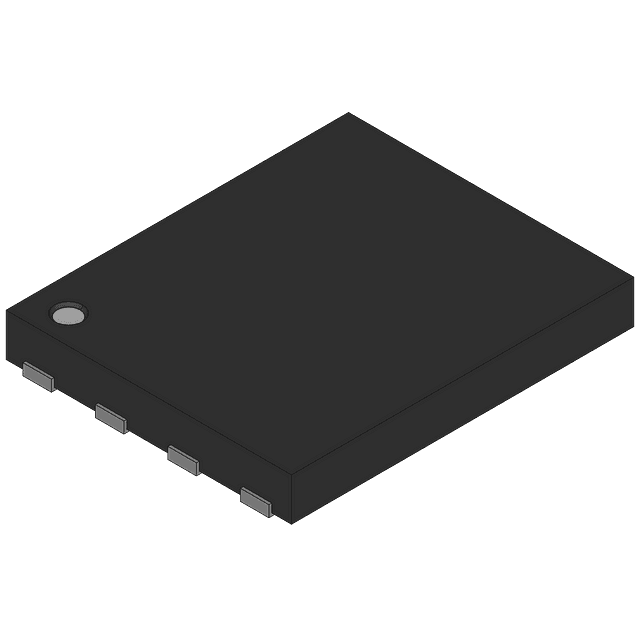

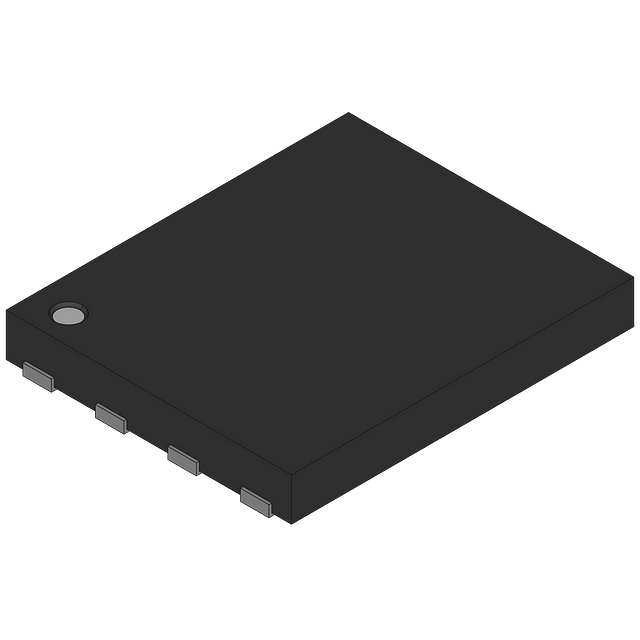

Product Images
