Eight-channel EMI/RFI filter with integrated ESD protection, featuring 100 Ohm resistance and 17pF capacitance per channel. Operates from 800 to 2200 MHz with -35dB attenuation at 105MHz. Housed in a 4mm x 1.6mm x 1mm DFN package, this lead-free and halogen-free component offers 8V max breakdown voltage and operates between -40°C and 85°C. Supplied on a 4000-piece tape and reel.
Frequency800 to 2200 MHz
PackageDFN
Capacitance17pF
Resistance100R
Quick Jump:
Technical Specifications
Onsemi NUF8402MNT4G technical specifications.
General
| Attenuation Value | -35dB |
| Capacitance | 17pF |
| Package/Case | DFN |
| Circuit Type | Filter |
| Depth | 1.6mm |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Breakdown Voltage | 8V |
| Max DC Current | 100nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 8 |
| Number of Elements | 16 |
| Number of Lines | 8 |
| Operating Frequency | 800 to 2200 MHz |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 100R |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Flat |
| Test Frequency | 105MHz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NUF8402MNT4G Datasheet
Download the complete datasheet for Onsemi NUF8402MNT4G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

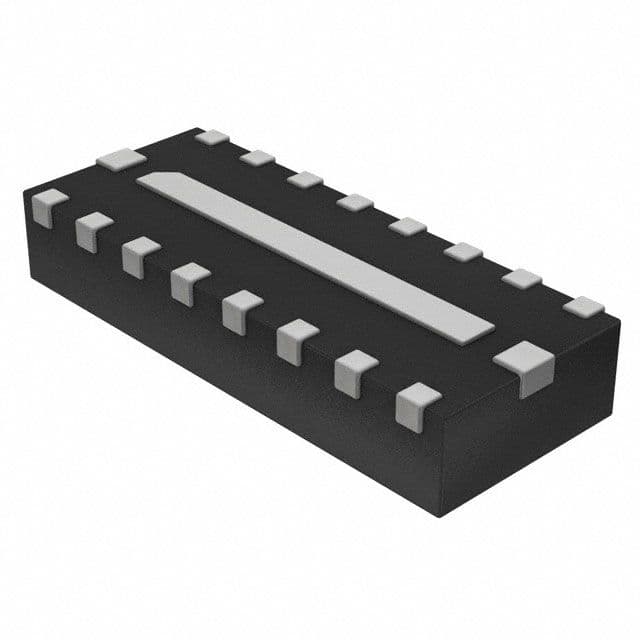

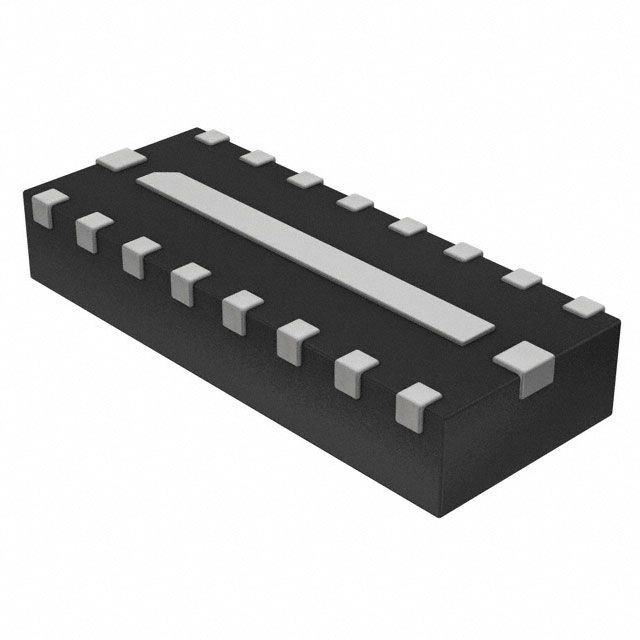

Product Images
