ONSEMI

NZL5V6AXV3T1G

TVS Diode, 5.6V Zener, Unidirectional, 2-Ch, SC, 45pF, 10.1A

Onsemi

NZL5V6AXV3T1G

Name: NZL5V6AXV3T1G Onsemi
Brand: Onsemi
SKU: NZL5V6AXV3T1G

TVS Diode, 5.6V Zener, Unidirectional, 2-Ch, SC, 45pF, 10.1A

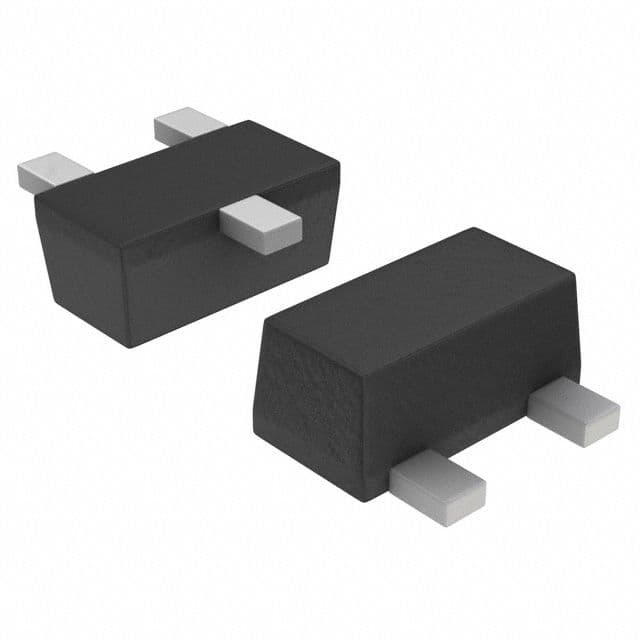

Unidirectional TVS diode offering robust ESD protection for two lines. Features a 5.6V Zener voltage with a 5% tolerance, 3V reverse standoff voltage, and 5.32V reverse breakdown voltage. Operates within a -55°C to 150°C temperature range, with a low leakage current of 5uA. Delivers 50W peak pulse power and 10.1A peak pulse current, with a clamping voltage of 10.1V. Packaged in a compact SC-89 (SC) surface-mount case, supplied on a 3000-piece tape and reel.

PackageSC

Capacitance45pF

Voltage Rating3V

PolarityUnidirectional

Quick Jump:

Technical Specifications

Onsemi NZL5V6AXV3T1G technical specifications.

General

Capacitance	45pF
Package/Case	SC
Clamping Voltage	10.1V
Clamping Voltage-Max	10.1V
Depth	0.85mm
Diode Type	ZENER
Direction	Unidirectional
ESD Protection	Yes
Halogen Free	Halogen Free
Height	0.8mm
Impedance	40R
Lead Free	Lead Free
Leakage Current	5uA
Length	1.6mm
Max Breakdown Voltage	5.88V
Min Breakdown Voltage	5.32V
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Reverse Leakage Current	5uA
Number of Channels	2
Number of Elements	2
Number of Lines	2
Number of Unidirectional Channels	2
Package Quantity	3000
Packaging	Tape and Reel
Peak Pulse Current	10.1A
Peak Pulse Power	50W
Polarity	Unidirectional
Power Dissipation	240mW
Power Line Protection	No
Radiation Hardening	No
Reverse Breakdown Voltage	5.32V
Reverse Standoff Voltage	3V
RoHS Compliant	Yes
Series	Automotive, AEC-Q101
DC Rated Voltage	5.6V
Voltage Tolerance	5%
Width	0.95mm
Working Voltage	3V
Zener Voltage	5.6V
