600W unidirectional transient voltage suppressor with a 33V DC rated voltage. Features a 31.4V minimum breakdown voltage and 45.7V clamping voltage. Operates from -55°C to 150°C with a maximum leakage current of 5uA. Designed for axial lead termination and tape and reel packaging, offering ESD protection.
PackageAxial
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Onsemi P6KE33ARLG technical specifications.
General
Package/Case
Axial
Clamping Voltage
45.7V
Clamping Voltage-Max
45.7V
Diameter
3.68mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
3.68mm
Lead Free
Lead Free
Leakage Current
5uA
Length
8.89mm
Max Breakdown Voltage
34.7V
Min Breakdown Voltage
31.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
13.2A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
28.2V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
13.2A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
31.4V
Reverse Standoff Voltage
28.2V
RoHS Compliant
Yes
Series
Surmetic™
Termination
Axial
DC Rated Voltage
33V
Width
3.68mm
Compliance
RoHS
Compliant
Datasheet
Onsemi P6KE33ARLG Datasheet
Download the complete datasheet for Onsemi P6KE33ARLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

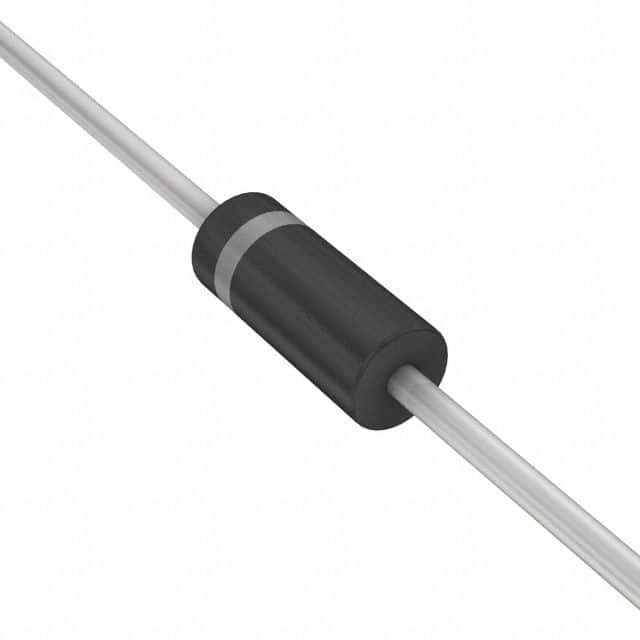

Product Images
