Surface mount NPN silicon infrared phototransistor with a 120° viewing angle and 880nm wavelength. Features a 35V collector-emitter breakdown voltage, 15mA max collector current, and 165mW max power dissipation. Operates from -55°C to 100°C and is housed in a PLCC package, supplied on a 2000-piece tape and reel. This lead-free, RoHS compliant component offers a 5V operating supply voltage and 8000ns fall time.
PackagePLCC
MountingSurface Mount
PolarityNPN
Power165mW
Quick Jump:
Technical Specifications
Onsemi QSB320TR technical specifications.
General
Package/Case
PLCC
Collector Emitter Breakdown Voltage
35V
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
30V
Fall Time
8000ns
Lead Free
Lead Free
Lens Style
Flat
Max Breakdown Voltage
35V
Max Collector Current
15mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Power Dissipation
165mW
Mount
Surface Mount
Number of Elements
1
Operating Supply Voltage
5V
Orientation
Top View
Package Quantity
2000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
165mW
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
120°
Wavelength
880nm
Weight
0.1287g
Compliance
RoHS
Compliant
Datasheet
Onsemi QSB320TR Datasheet
Download the complete datasheet for Onsemi QSB320TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

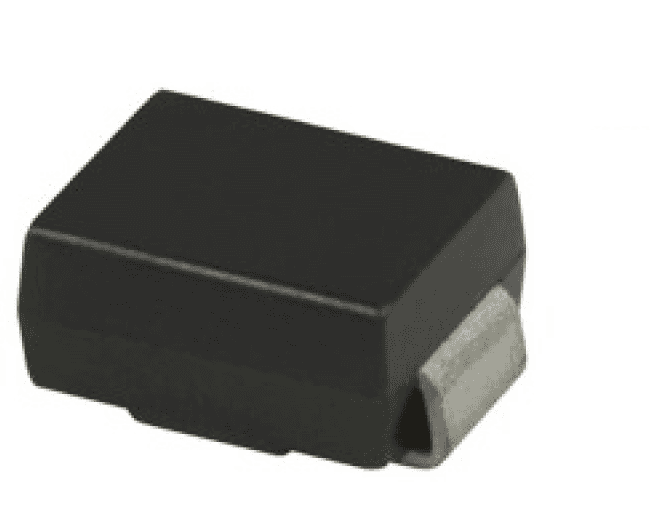

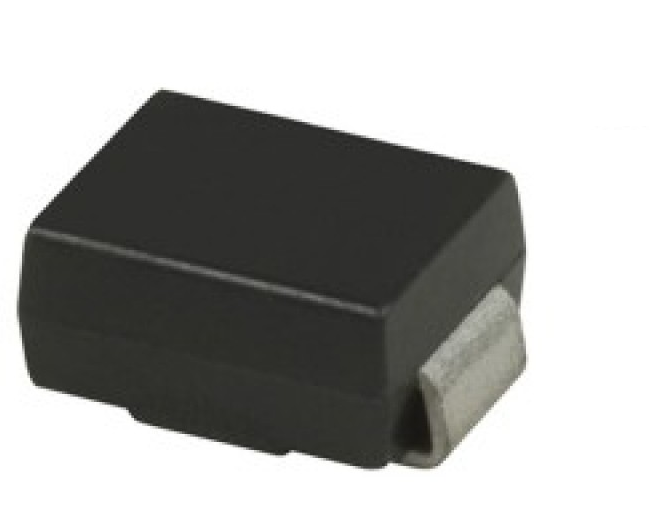

Product Images
