General purpose rectifier diode with a 400V repetitive reverse voltage and 3A average rectified current. Features a 100A peak non-repetitive surge current and a 2.5µs reverse recovery time. Housed in an SMC surface mount package, this single element diode operates from -55°C to 150°C and offers 2.6W power dissipation. RoHS compliant and lead-free.
PackageSMC
Current Rating3A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi S3G technical specifications.
General
Average Rectified Current
3A
Package/Case
SMC
Current Rating
3A
Element Configuration
Single
Forward Current
3A
Height
2.75mm
Lead Free
Lead Free
Length
7.15mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
400V
Max Surge Current
100A
Mount
Surface Mount
Output Current
3A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Power Dissipation
2.6W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
2.5us
Reverse Voltage
400V
RoHS Compliant
Yes
DC Rated Voltage
400V
Weight
0.3g
Width
6.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi S3G Datasheet
Download the complete datasheet for Onsemi S3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

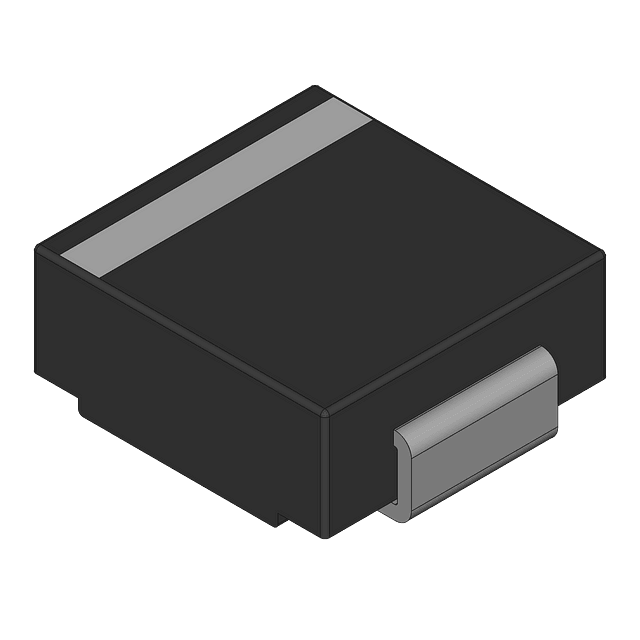

Product Images
