Technical Specifications

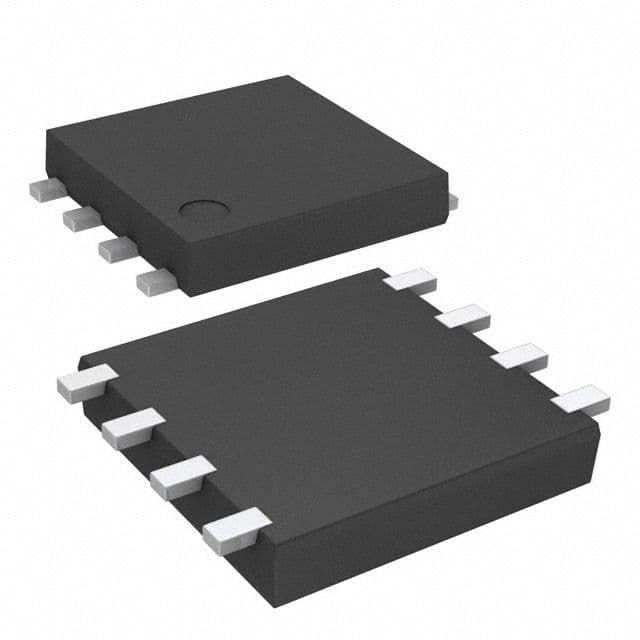

Onsemi SBE813-TL-E technical specifications.
General
Average Rectified Current
3A
Package/Case
SMD/SMT
Element Configuration
Dual
Forward Current
3A
Height
0.75mm
Lead Free
Lead Free
Length
2.9mm
Max Forward Surge Current (Ifsm)
20A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
42uA
Max Reverse Leakage Current
42uA
Max Reverse Voltage (DC)
30V
Max Surge Current
20A
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
20A
Radiation Hardening
No
Reverse Recovery Time
20ns
RoHS Compliant
Yes
Width
2.3mm
Compliance
RoHS
Compliant
