PackageTO-251-3
PolarityN-CHANNEL
Power1W
Quick Jump:
Technical Specifications
Onsemi SFT1443-H technical specifications.
General
Package/Case
TO-251-3
Continuous Drain Current (ID)
9A
Drain to Source Breakdown Voltage
100V
Drain to Source Resistance
180mR
Drain to Source Voltage (Vdss)
100V
Element Configuration
Single
Fall Time
24ns
Gate to Source Voltage (Vgs)
20V
Halogen Free
Halogen Free
Input Capacitance
490pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
19W
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
1W
Radiation Hardening
No
Rds On Max
225mR
RoHS Compliant
Yes
Turn-Off Delay Time
34ns
Turn-On Delay Time
8ns
Compliance
RoHS
Compliant
Datasheet
Onsemi SFT1443-H Datasheet
Download the complete datasheet for Onsemi SFT1443-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

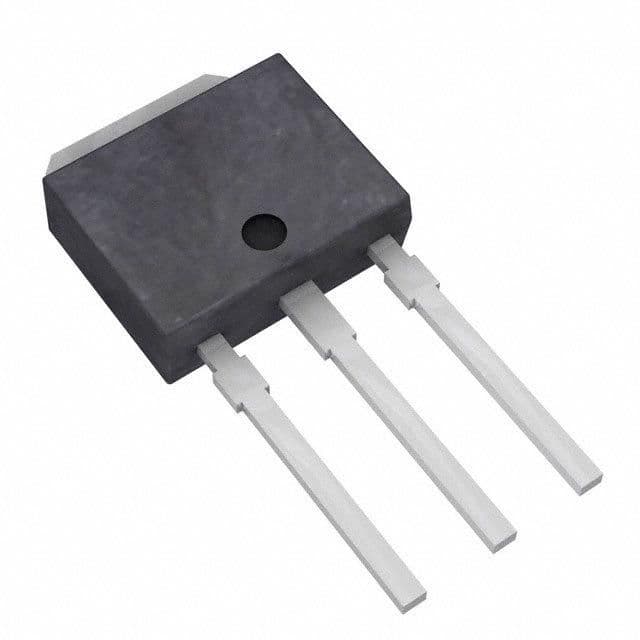

Product Images
