PackageTO-251-3
PolarityN-CHANNEL
Power23W
Quick Jump:
Technical Specifications
Onsemi SFT1446-H technical specifications.
General
Package/Case
TO-251-3
Continuous Drain Current (ID)
20A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
51mR
Drain to Source Voltage (Vdss)
60V
Element Configuration
Single
Fall Time
48ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
750pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
23W
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
23W
Radiation Hardening
No
Rds On Max
51mR
RoHS Compliant
Yes
Turn-Off Delay Time
60ns
Compliance
RoHS
Compliant
Datasheet
Onsemi SFT1446-H Datasheet
Download the complete datasheet for Onsemi SFT1446-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

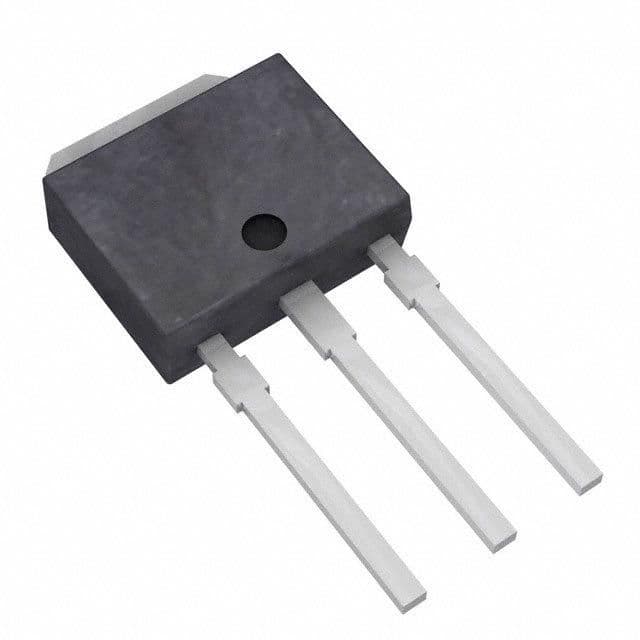

Product Images
