Technical Specifications
Onsemi SZMM3Z12VST1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Impedance | 25R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 100nA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Tolerance | 2% |
| Zener Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SZMM3Z12VST1G Datasheet
Download the complete datasheet for Onsemi SZMM3Z12VST1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

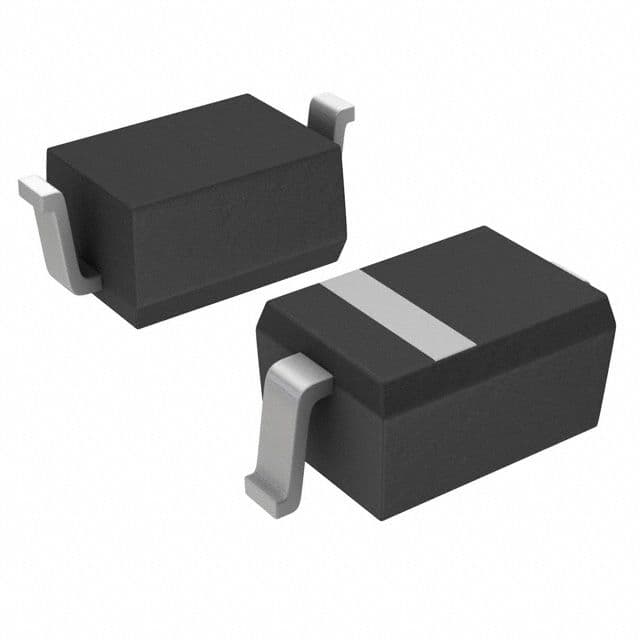

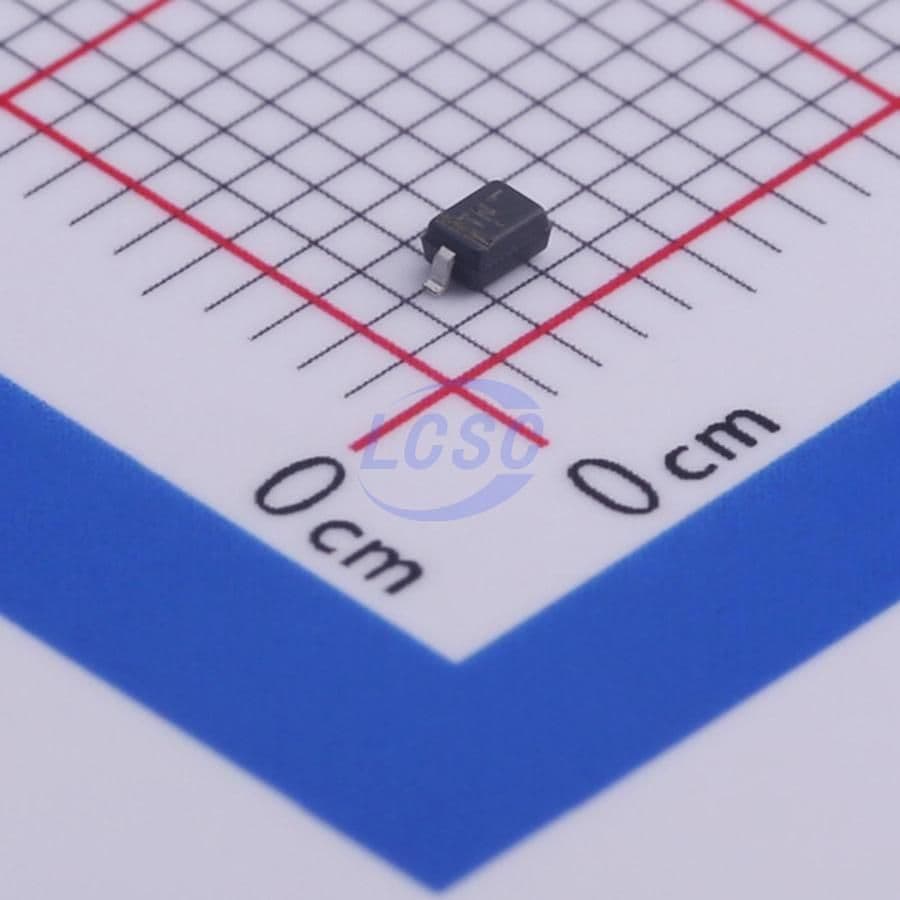

Product Images
