The SZMM3Z2V4T1G is a 2.4V Zener diode from Onsemi, packaged in a SOD-323-2 case. It has a maximum power dissipation of 300mW and operates over a temperature range of -65°C to 150°C. The diode has a tolerance of 8% and a maximum reverse leakage current of 50uA. It is lead free and RoHS compliant, and is part of the Automotive, AEC-Q101 series.
PackageSOD-323-2
Quick Jump:
Technical Specifications
Onsemi SZMM3Z2V4T1G technical specifications.
General
| Package/Case | SOD-323-2 |
| Impedance | 100R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 50uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Tolerance | 8% |
| Zener Voltage | 2.4V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SZMM3Z2V4T1G Datasheet
Download the complete datasheet for Onsemi SZMM3Z2V4T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

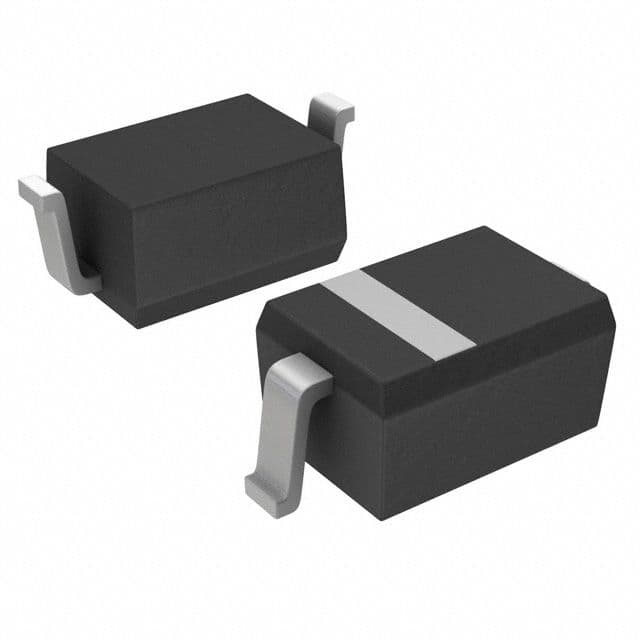

Product Images
