Technical Specifications
Onsemi SZMMSZ3V9T1G technical specifications.
General
| Package/Case | SOD-123-2 |
| Impedance | 90R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 3uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Voltage | 3.9V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SZMMSZ3V9T1G Datasheet
Download the complete datasheet for Onsemi SZMMSZ3V9T1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

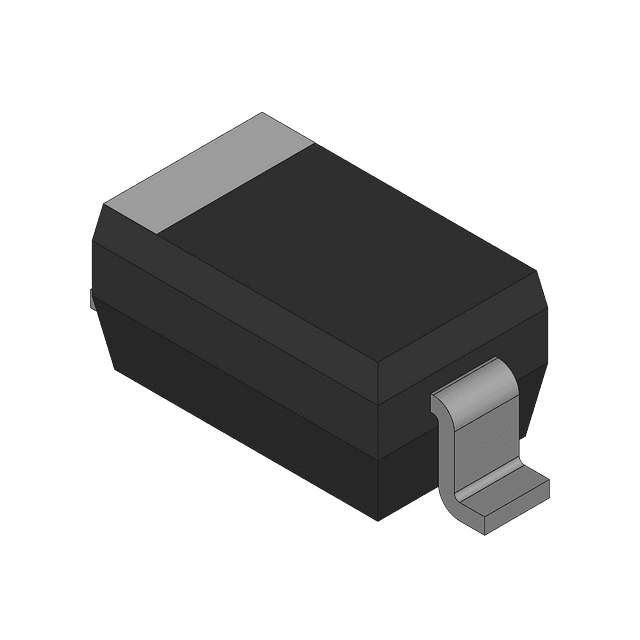

Product Images
