Dual operational amplifier featuring a 1.4MHz bandwidth and 1A output current. This general-purpose op-amp offers a 70dB common mode rejection ratio and power supply rejection ratio, with a 1.4V/µs slew rate. Operating from 2.5V to 40V dual supply or 5V to 20V single supply, it has a 5mA operating supply current. Packaged in a 1.85mm height SOIC, this RoHS and Halogen Free component is supplied on a 1000-piece tape and reel.
Frequency100kHz
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Onsemi TCA0372DWR2G technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.4MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1.4MHz
Halogen Free
Halogen Free
Height
1.85mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
15mV
Input Offset Voltage-Max
20mV
Lead Free
Lead Free
Length
10.5mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
2.5V
Max Frequency
100kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
40V
Min Supply Voltage
5V
Nominal Gain Bandwidth Product
1.4MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
5mA
Operating Supply Voltage
20V
Output Current
1A
Output Current per Channel
1A
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.4V/µs
Slew Rate-Nom
1.4V/µs
Supply Current
5mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.4MHz
Voltage Gain
100dB
Width
5.45mm
Compliance
RoHS
Compliant
Datasheet
Onsemi TCA0372DWR2G Datasheet
Download the complete datasheet for Onsemi TCA0372DWR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

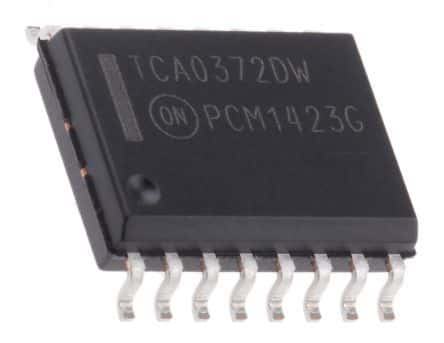

Product Images
